PISO-730U-5V

Name: PISO-730U-5V
Brand: ICP DAS
SKU: 06929400
Availability: InStock

ICP DAS

Ціна за запитом

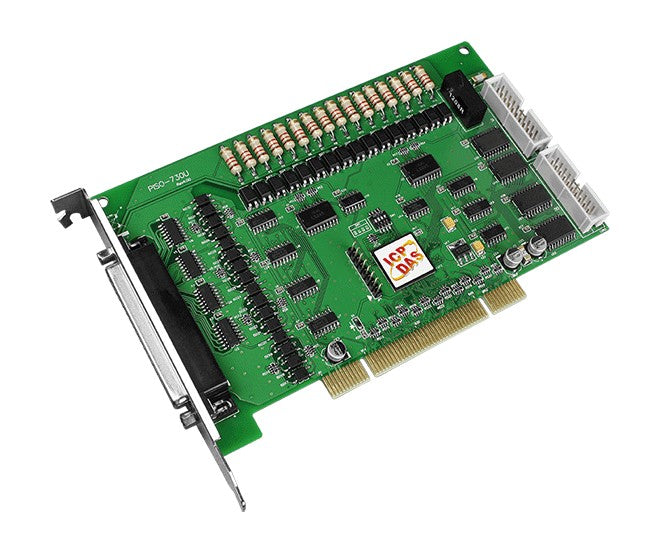

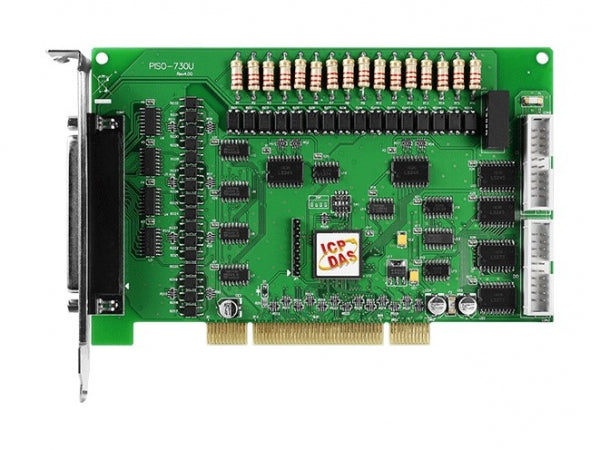

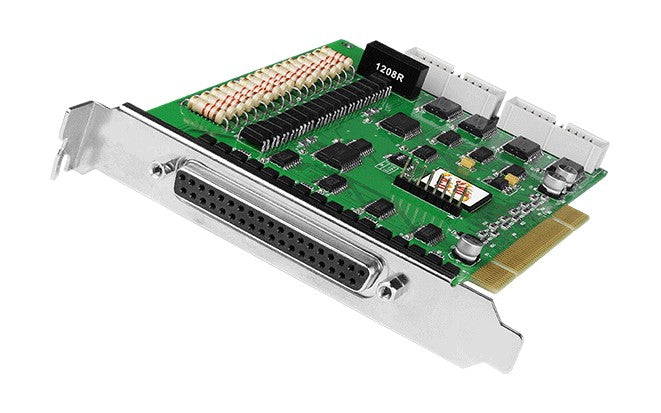

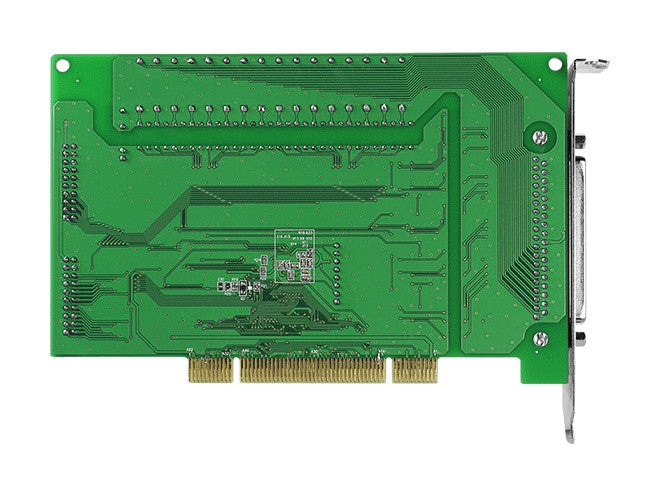

Universal PCI Isolated 16DI, 16DO, Non-Isolated TTL 16DI, 16DO Card, 5VDC-in

Специфікація

Specification

System Architecture
System Bus	Universal PCI
Digital Input
Total channels of digital input	32
Isolation of Digital Input	3750 V
Level of Logic "0"	0~0.8 V
Level of Logic "1"	2~5 V
Digital Output
Total channels of digital output	32
Type	Open collector
Sink/Source	Sink
Output voltage	0~5 V
Max. load current	0.8 mA
Connectors
Internal Ports	2x20-pin box header
Connectors	DB37 Female
Software
Operating System Compatibility	Linux kernel 2.6, Windows XP, Windows 7, Windows 8, Windows Vista
Development Software	VC, VB, Delphi, BCB, LabVIEW
Operating Conditions
Operating Temperature	0...60 °C
