PISO-DA4U/S

Name: PISO-DA4U/S
Brand: ICP DAS
SKU: 05638900
Availability: InStock

ICP DAS

Ціна за запитом

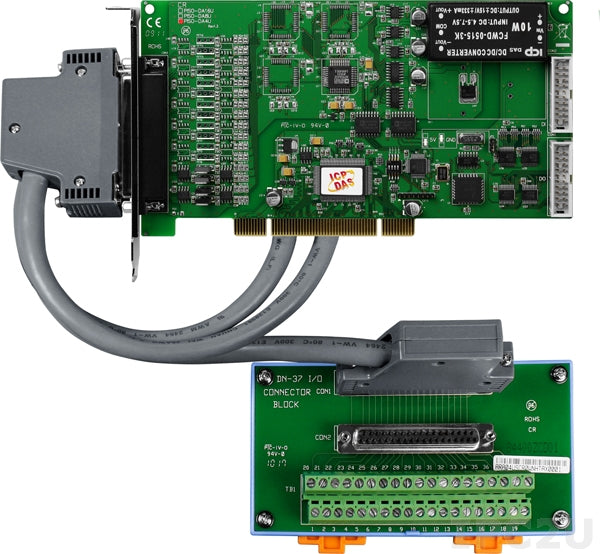

Universal PCI, 14-bit 4-channel Isolated Analog Output Board, One CA-4002 D-Sub connector, DN-37 and CA-3710 D-Sub cable

Специфікація

Specification

System Architecture
System Bus	Universal PCI
Analog Output
Channels of analog input	4
Current range	0...20 mA
Voltage range	+/-10 V
Digital Input
Total channels of digital input	16
Level of Logic "0"	0~0.8 V
Level of Logic "1"	2~5 V
Number of channels	3
Counter capacity	16 Bit
Max frequency	4 kHz
Digital Output
Total channels of digital output	16
Output voltage	0~5 V
Max. load current	0.8 mA
Connectors
Internal Ports	2x20-pin box header
Connectors	DB37 Female
Cables
Included Cables	DN-37 and СА-3710
Software
Operating System Compatibility	Linux kernel 2.6, Windows XP, Windows 7, Windows 8, Windows Vista
Development Software	VC, VB, Delphi, BCB, LabVIEW
Operating Conditions
Operating Temperature	0...60 °C
