Construction | |
| Construction Chassis | Plastic Chassis |
| Mounting Configuration | DIN-Rail mount |
Supported Protocols | |
| Industrial Protocols | CAN Slave |
Interfaces | |

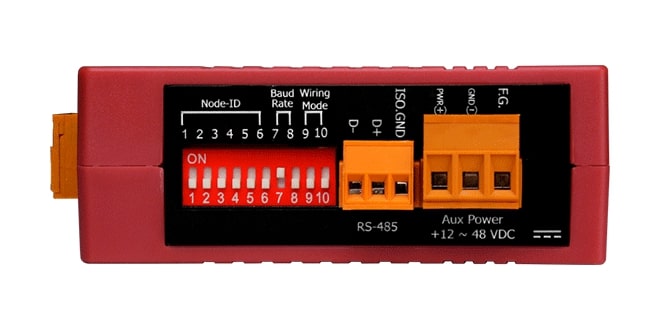

| RS-485 | 1 |
AC Power Measurement | |
| Frequency | 50/60Hz |
| Input Voltage | 10...500V AC |
| Input Current | 4000A |

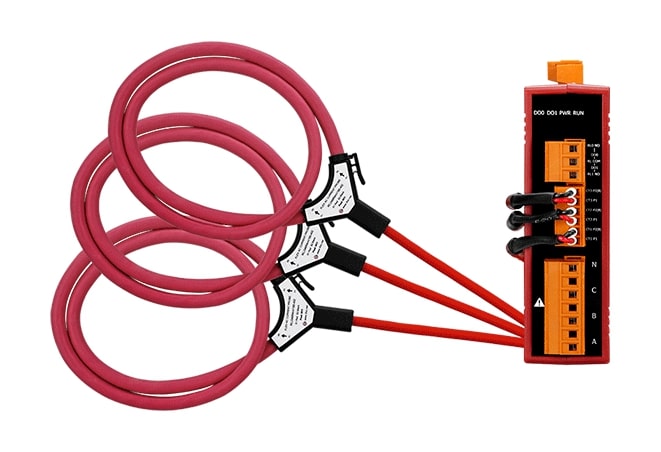

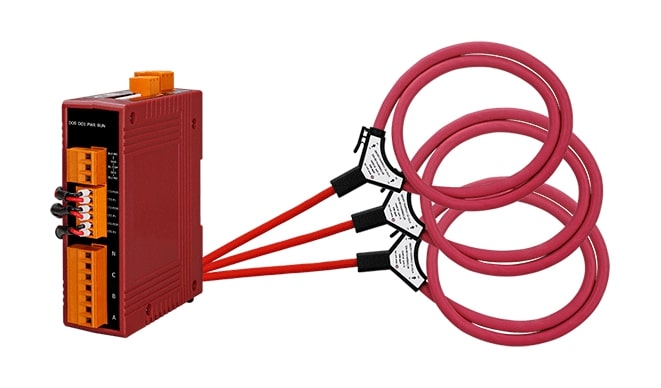

| CT Type | Rogowski Coil CT |
| Power Parameter Measurement | True RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Apparent Power (kVA), Apparent Energy (kVAh), Reactive Power (kVAR), Reactive Energy (kVARh), Power Factor (PF), Frequency, Total Harmonic Distortion (THD) |
Digital Output | |
| Total channels of digital output | 2 |
| Type | Electromagnitic relay |
System Power Input | |
| Input Voltage DC | 12...48 V |
Operating Conditions | |
| Operating Temperature | -20...70 °C |
Dimensions and weight | |
| Width | 33 mm |
| Depth | 105 mm |
| Height | 127 mm |
