PM-3133-RCT4000P-MTCP

Ціна за запитом

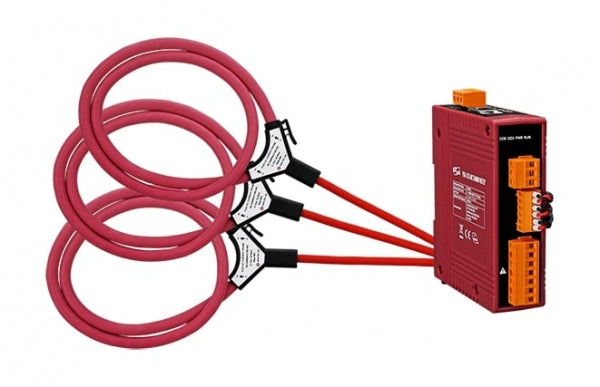

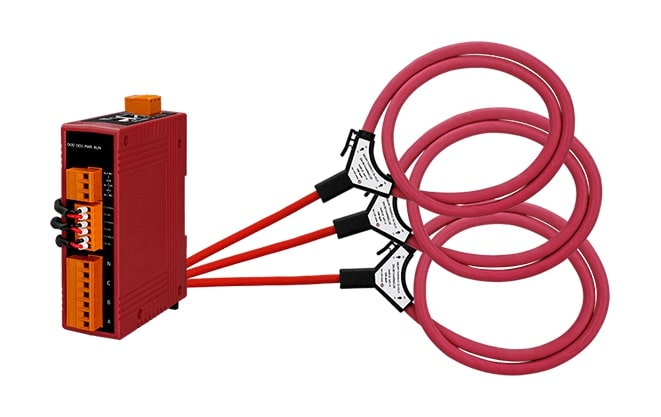

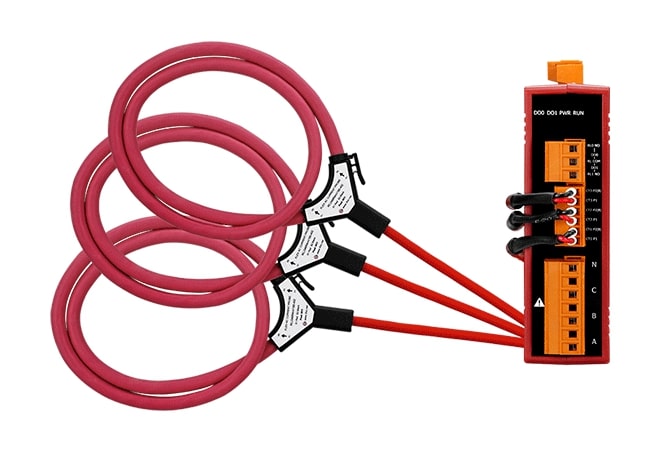

Modbus TCP, 3-phase power meter, 4000A Rogowski Coil CT (Inside diameter 185 mm; wire lead 4 m) x 3 (RoHS)

Specification

Construction

Construction ChassisPlastic Chassis
Mounting ConfigurationDIN-Rail mount

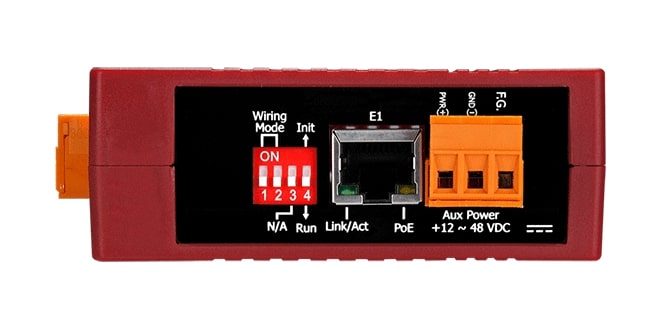

Ethernet

Total Ethernet1
10/100 Mbit/s1

System Power Input

Power over Ethernet (PoE)IEEE 802.3af
Input Voltage DC12...48 V

Interfaces

RS-4851

AC Power Measurement

Frequency50/60Hz
Input Voltage10...500V AC
Input Current4000A
CT TypeRogowski Coil CT
Power Parameter MeasurementTrue RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Apparent Power (kVA), Apparent Energy (kVAh), Reactive Power (kVAR), Reactive Energy (kVARh), Power Factor (PF), Frequency, Total Harmonic Distortion (THD)

Digital Output

Total channels of digital output2
TypeElectromagnitic relay

Operating Conditions

Operating Temperature-20...70 °C

Dimensions and weight

Width33 mm
Depth105 mm
Height127 mm

Files

Documentation

📄 PM-3133-RCT
