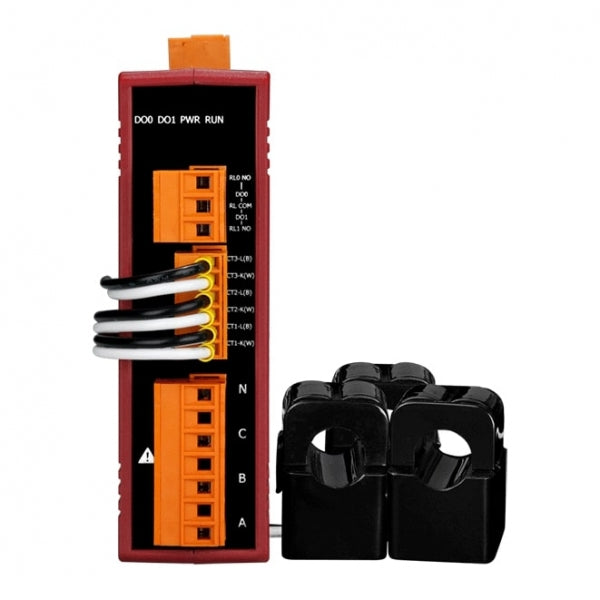

CANopen, Isolated 3-phase power meter, includes 300A CT, Inside diameter 36 mm, wire lead 4 m x 3, RoHS



Construction ChassisPlastic Chassis
Mounting ConfigurationDIN-Rail mount

Supported Protocols

Industrial ProtocolsCAN Slave

AC Power Measurement

Input Voltage10...500V AC
Voltage measurement channels1 (three-phase)
Input Current300А
Current measurement channels3
CT TypeSplit-core CT
Power Parameter MeasurementTrue RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Apparent Power (kVA), Apparent Energy (kVAh), Reactive Power (kVAR), Reactive Energy (kVARh), Power Factor (PF), Frequency, Total Harmonic Distortion (THD)

Digital Output

Total channels of digital output2
TypeElectromagnitic relay

System Power Input

Input Voltage DC12...48 V

Operating Conditions

Operating Temperature-10...70 °C

Dimensions and weight

Width33 mm
Depth100 mm
Height127 mm
