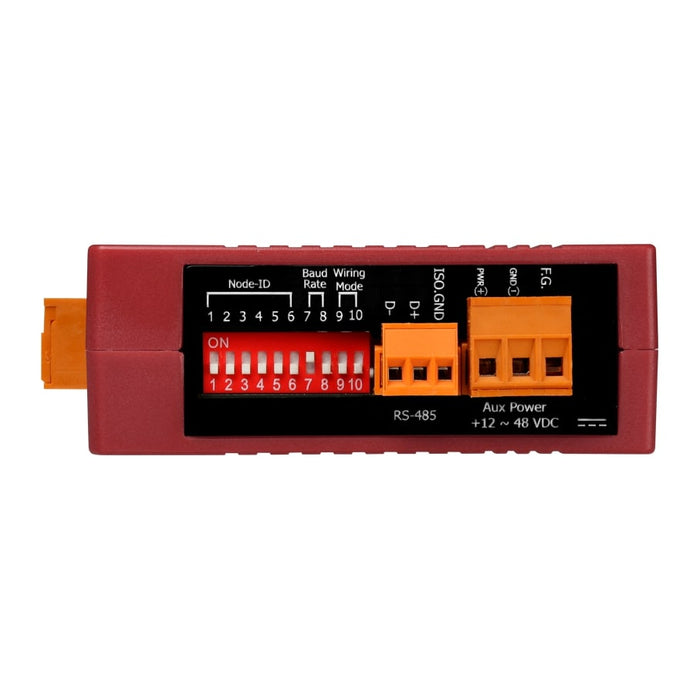

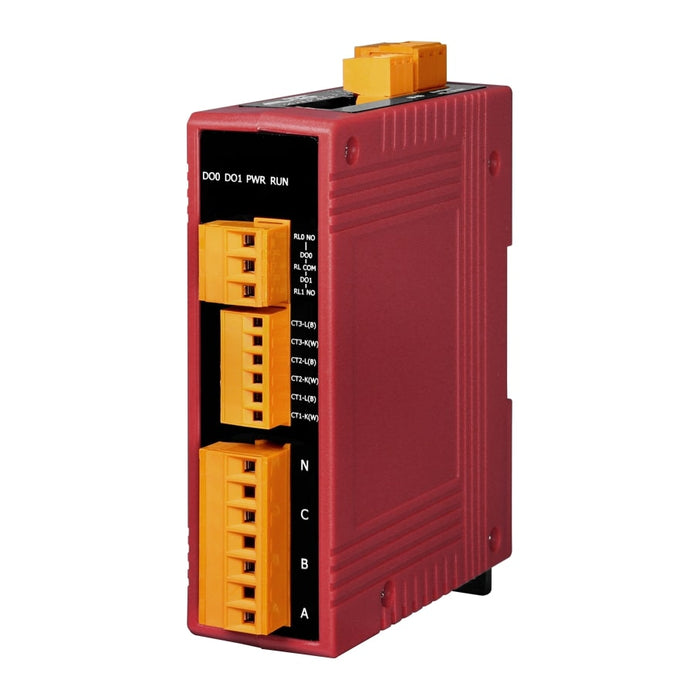

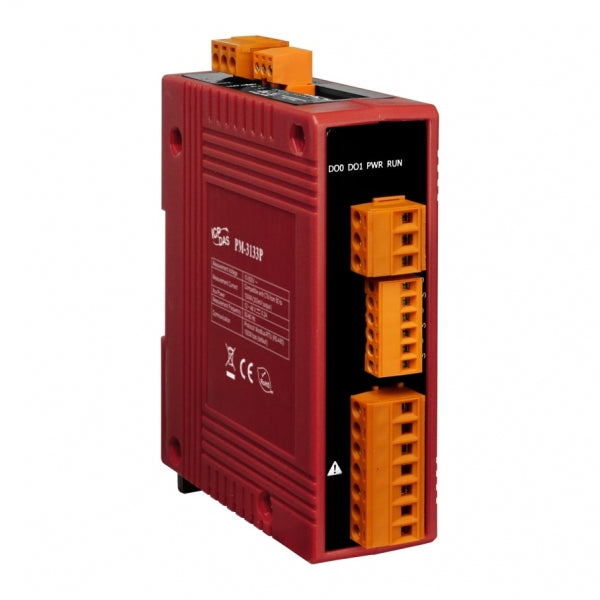

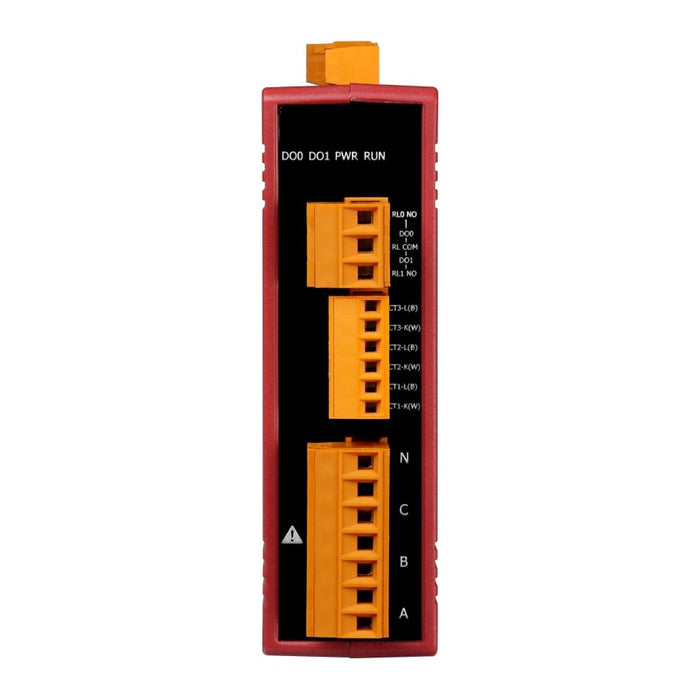

PM-3133P

Ціна за запитом
Modbus RTU; 3-phase Smart Power Meter

Specification

Construction

Construction ChassisPlastic Chassis
Mounting ConfigurationDIN-Rail mount

Supported Protocols

Industrial ProtocolsModbus RTU slave

Interfaces

RS-4851

AC Power Measurement

Frequency50/60Hz
Input Voltage10...500V AC
Voltage measurement channels1 (three-phase)
Input Current1200А
Current measurement channels3
Power Parameter MeasurementTrue RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Apparent Power (kVA), Apparent Energy (kVAh), Reactive Power (kVAR), Reactive Energy (kVARh), Power Factor (PF), Frequency

Digital Output

Total channels of digital output2
TypeElectromagnitic relay

System Power Input

Input Voltage DC12...48 V

Operating Conditions

Operating Temperature-20...70 °C

Dimensions and weight

Width33 mm
Depth100 mm
Height127 mm
