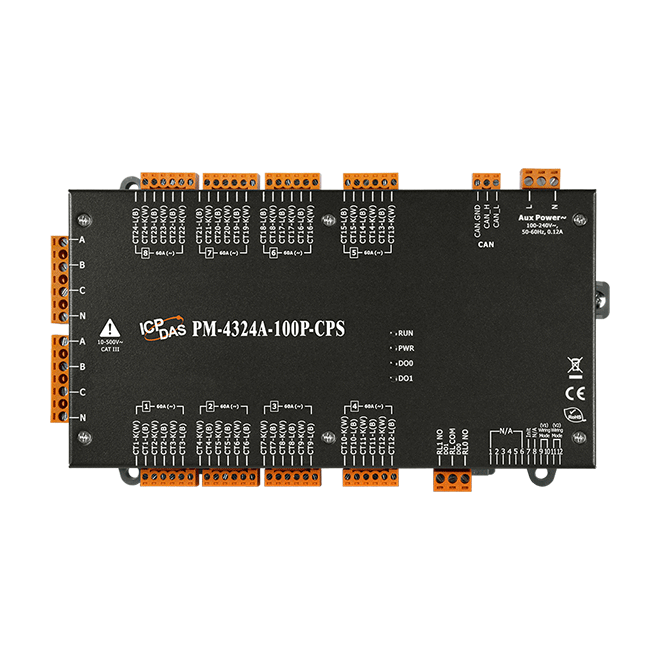

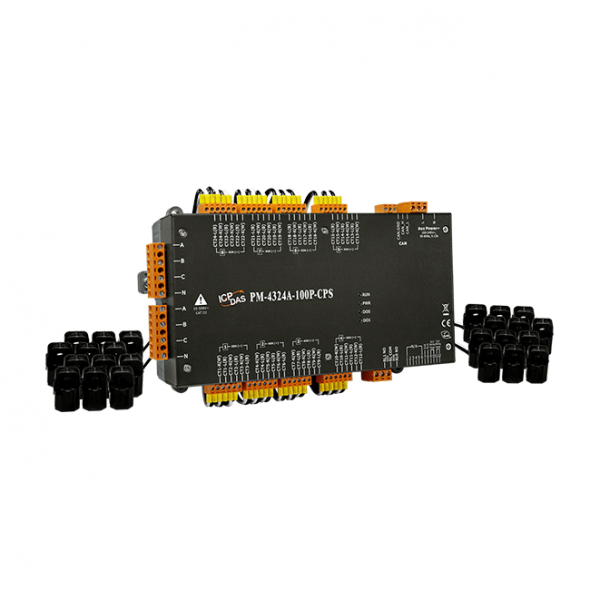

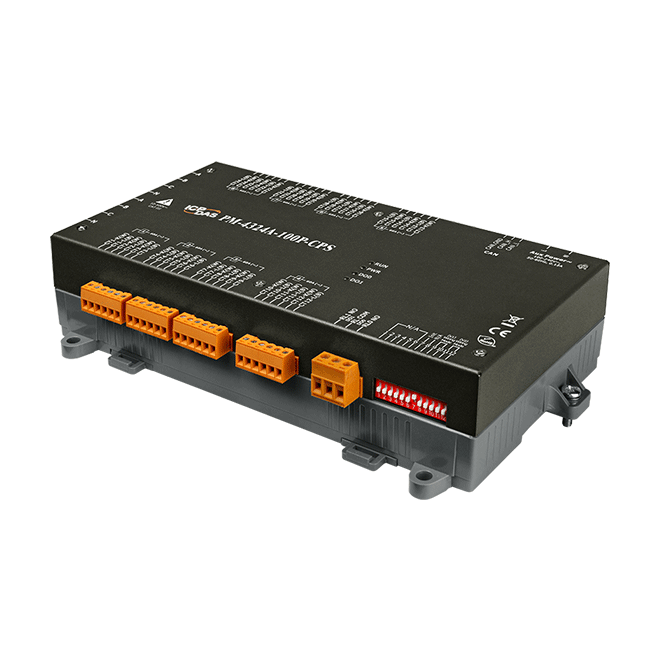

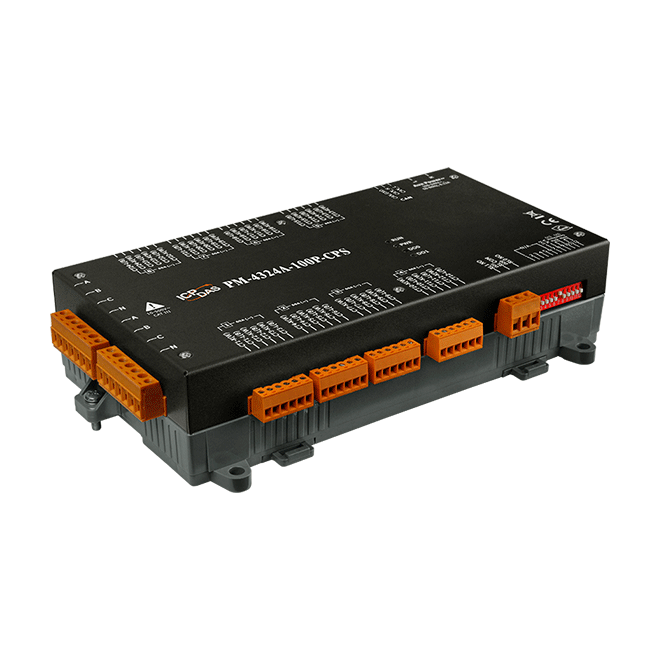

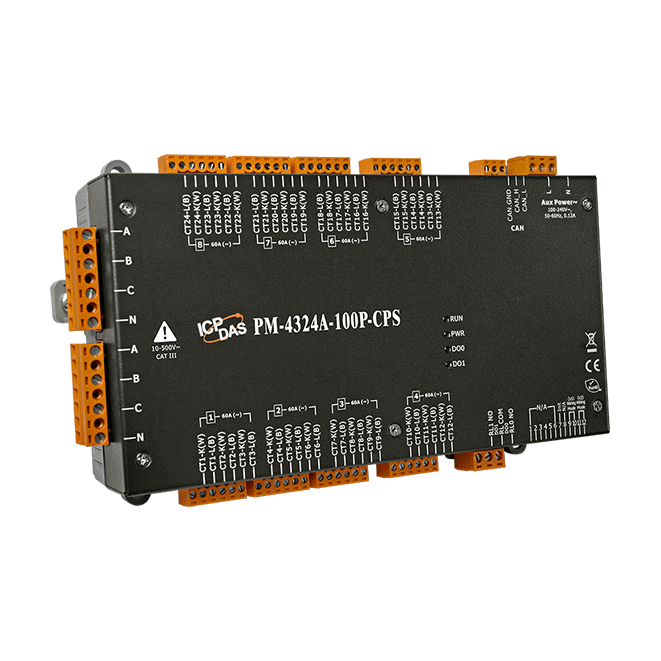

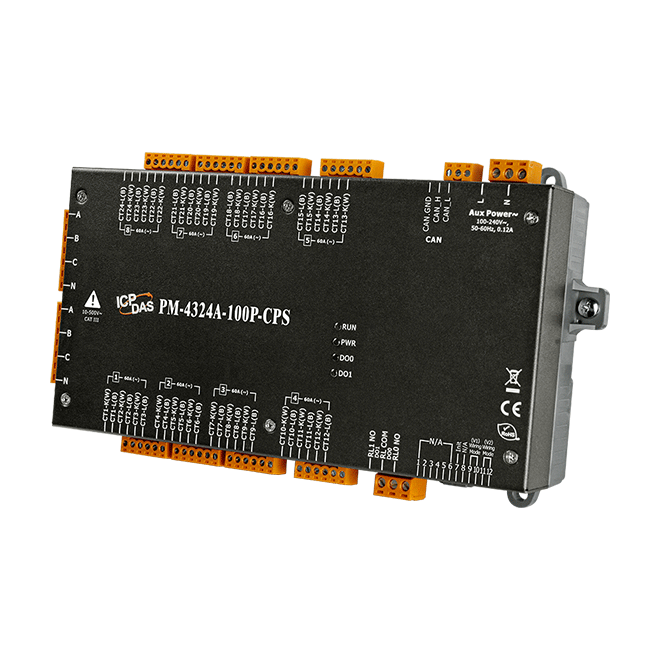

CANopen, Multi-Channel Power Meter (60 A) with 2 separate main circuit inputs



Construction ChassisPlastic Chassis
Mounting ConfigurationDIN-Rail mount

Supported Protocols

Industrial ProtocolsCANopen, CAN Slave

AC Power Measurement

Input Voltage10...500V AC
Voltage measurement channels2 (three-phase)
Input Current60А
Current measurement channels24
CT TypeSplit-core CT
Power Parameter MeasurementTrue RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Apparent Power (kVA), Apparent Energy (kVAh), Reactive Power (kVAR), Reactive Energy (kVARh), Power Factor (PF), Frequency

Digital Output

Total channels of digital output2
TypeElectromagnitic relay

System Power Input

Input Voltage AC85...264 V

Operating Conditions

Operating Temperature-20...70 °C

Dimensions and weight

Width52 mm
Depth237 mm
Height134 mm
