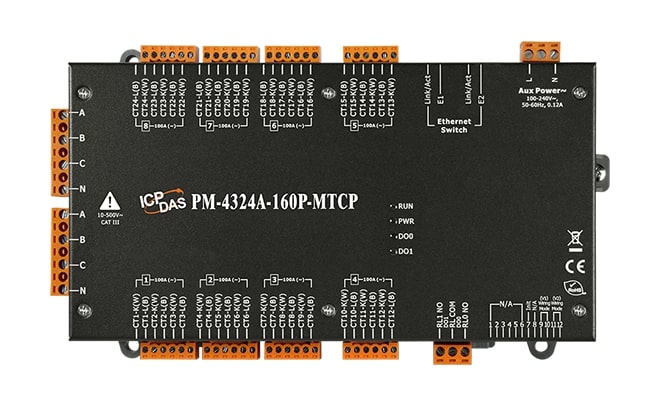

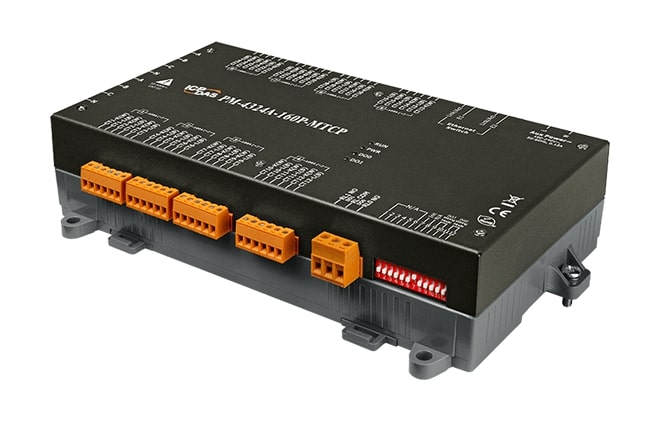

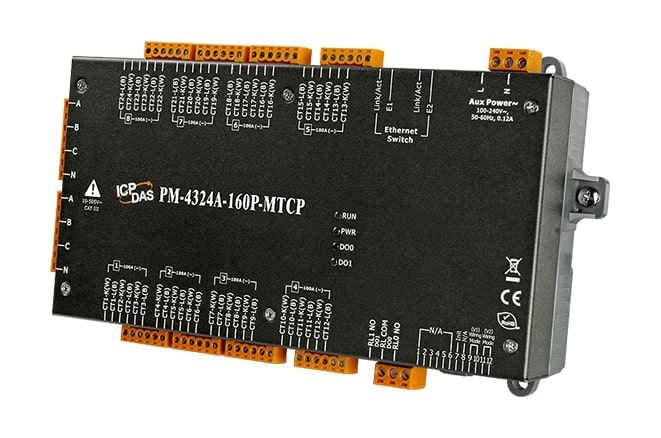

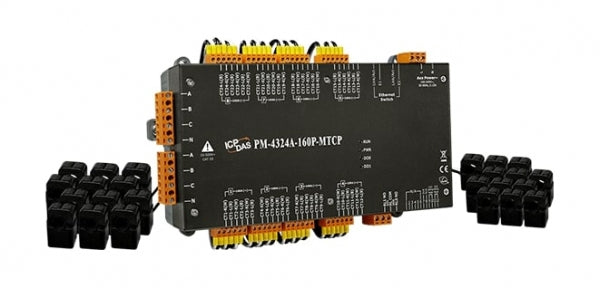

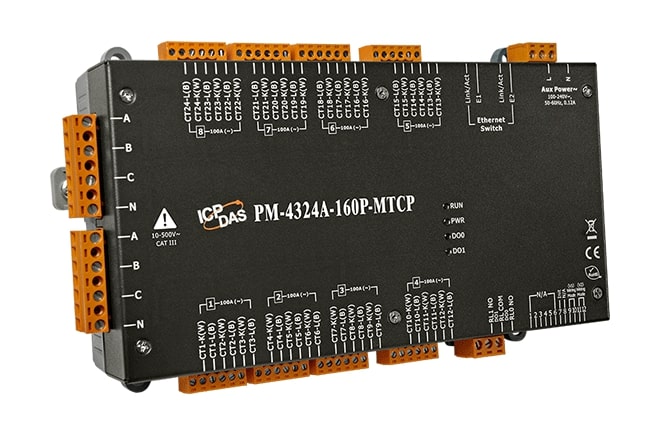

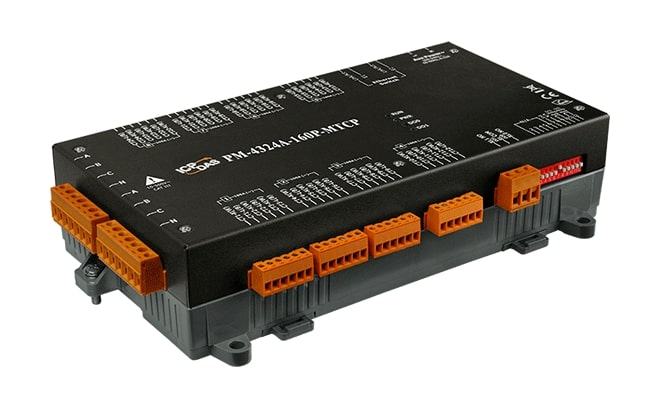

PM-4324A-160P-MTCP

Ціна за запитом
Modbus TCP; Multi-Channel Power Meter (100 A)

Specification

Construction

Construction ChassisPlastic Chassis
Mounting ConfigurationDIN-Rail mount

Supported Protocols

Industrial ProtocolsModbus RTU slave

Interfaces

RS-4851

AC Power Measurement

Frequency50/60Hz
Input Voltage10...500V AC
Voltage measurement channels2 (three-phase)
Input Current100А
Current measurement channels24
Power Parameter MeasurementTrue RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Apparent Power (kVA), Apparent Energy (kVAh), Reactive Power (kVAR), Reactive Energy (kVARh), Power Factor (PF), Frequency, Total Harmonic Distortion (THD)

Digital Output

Total channels of digital output2
TypeElectromagnitic relay

System Power Input

Input Voltage AC85...264 V

Operating Conditions

Operating Temperature-20...70 °C

Dimensions and weight

Width52 mm
Depth237 mm
Height134 mm
