Construction | |
| Construction Chassis | Aluminium Chassis |
| Mounting Configuration | Built-in, Panel |
| Protection Level of Front Side (Panel) | IP65 |
Display | |
| Display Type | LCD TFT |
| Diagonal | 9 " |
| Maximum resolution | 1024x600 Dots |
| Brightness | 300 Cd/m2 |
Touch Screen | |
| Touch Screen Type | Resistive |
CPU | |
| Processor Installed | NXP i.MX6 quad-core |
| Socket | CPU onboard |
| Max CPU frequency | 1.6 GHz |
Memory | |
| Form-factor | DDR4 |
| Default on Board Memory | 2 GB |
| Assembly | Fixed on Board |
Ethernet | |
| Total Ethernet | 1 |
Interfaces | |
| COM Total | 1 |
| RS-232/485 | 1 |
| USB Total | 2 |
| USB 2.0 | 2 |
Drive interfaces | |
| MicroSD | 1 |
Extension Slots | |
| Total | 1 |
| Mini-PCIe/Mini Card | 1 |
Connectors | |

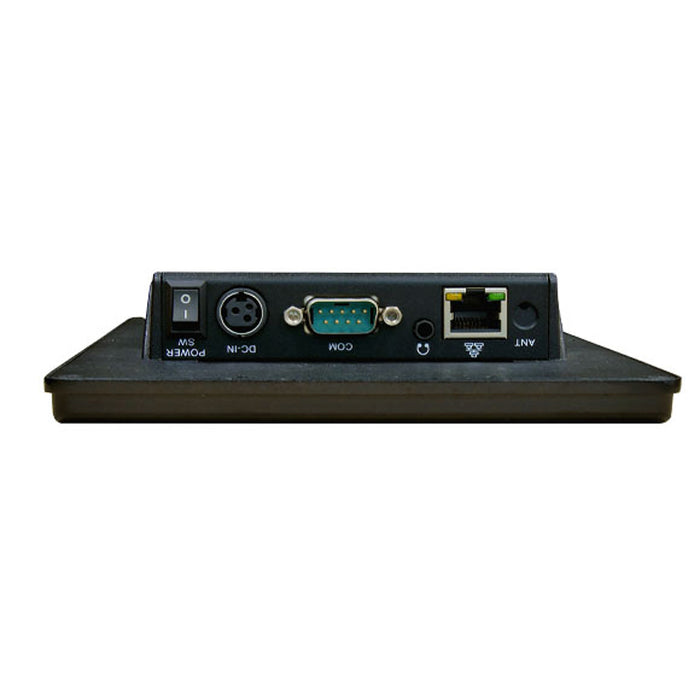

| Connectors | DB9, 2xUSB, Line Out, DC Input |
System Power Input | |
| Input Voltage DC | 8...35 V |
Software | |
| Operating System Compatibility | Android |
Dimensions and weight | |
| Width | 236.6 mm |
| Height | 146 mm |
| Depth | 35 mm |
Operating Conditions | |
| Operating Temperature | 0...60 °C |
Standards and Certifications | |
| Certifications | CE, FCC, VCCI |
