Construction | |
| Construction Chassis | Plastic Chassis |
| Protection Level of Front Side (Panel) | IP65 |
| Protection Level of Chassis | IP43 |
| Type | Fanless |
Display | |

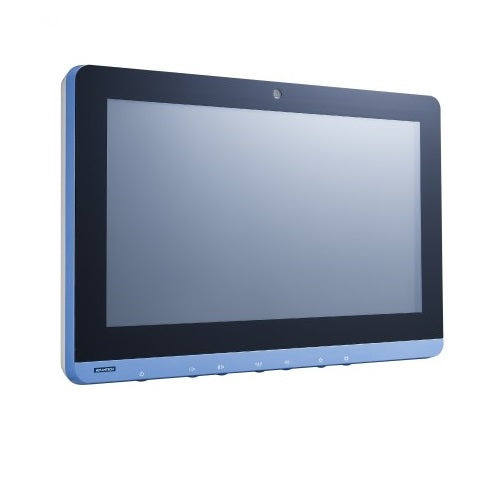

| Display Type | LCD TFT |
| Diagonal | 15.6 " |
| Maximum resolution | 1366x768 Dots |
| Aspect Ratio | 16:9 |
| Brightness | 300 Cd/m2 |
| Contrast Ratio | 500~1 |
Touch Screen | |
| Touch Screen Type | Capacitive |
CPU | |
| Processor Installed | Intel Celeron J1900 |
| Max CPU frequency | 2.42 GHz |
Memory | |
| Form-factor | DDR3L |
| Default on Board Memory | 16 GB |
Ethernet | |
| Total Ethernet | 1 |
| 10/100/1000 Mbit/s | 1 |
Wi-Fi | |
| Wi-Fi Standard | 802.11a/b/g/n |
Interfaces | |
| COM Total | 2 |
| RS-232/422/485 | 1 |
| USB Total | 5 |
| USB 2.0 | 3 |
| USB v3.x | 2 |
Drive interfaces | |
| mSATA | 1 |
Extension Slots | |
| Total | 2 |
| PCI Express x1 | 1 |
| Mini-PCIe/Mini Card | 1 |
LED / Controls | |
| LED | 1xOn/Off LED |
Connectors | |

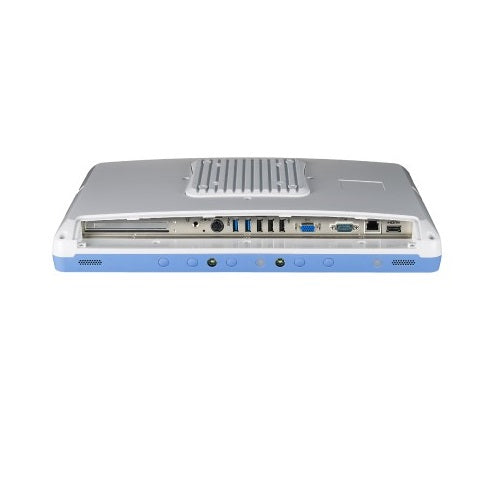

| Connectors | DB15 VGA, HDMI, RJ45 Ethernet, 5xUSB, DC Input, 1xCOM (terminal block) |
System Power Input | |
| Input Voltage DC | 18...18 V |
Power Supply | |
| Type of Power Supply | External power adapter AC/DC |
| Output Power | 100 W |
| Supported Types of Power Supply | Li-battery Pack |
Software | |
| Operating System Compatibility | Windows 7, Windows 8, Windows 10 |
Dimensions and weight | |
| Width | 405.53 mm |
| Height | 274 mm |
| Depth | 60.82 mm |
Operating Conditions | |
| Operating Temperature | 0...40 °C |
| Shock | 20G peak acceleration (11ms duration) |
Standards and Certifications | |
| Certifications | CE, FCC Class B |
| Medicine | UL 60601-1, EN 60601-1 |
