Construction | |

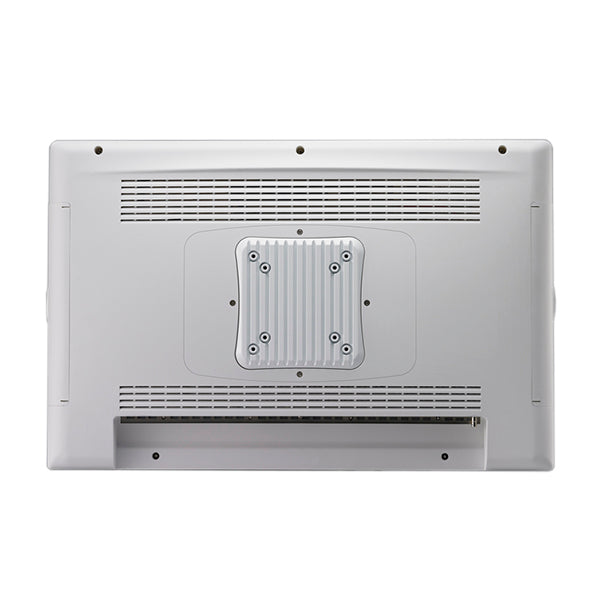

| Mounting Configuration | Wall VESA 100, Wall VESA 75 |
| Protection Level of Front Side (Panel) | IP65 |
| Protection Level of Chassis | IPX1 |
Display | |
| Display Type | LCD TFT |
| Diagonal | 21.5 " |
| Maximum resolution | 1920x1080 Dots |
| Brightness | 250 Cd/m2 |
| Contrast Ratio | 1000~1 |
Touch Screen | |
| Touch Screen Type | Capacitive |
CPU | |
| Processor Installed | Intel Core i7-4650U |
| Max CPU frequency | 3.3 GHz |
Memory | |
| Form-factor | DDR3 |
| Maximum Memory | 16 GB |
Ethernet | |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Wi-Fi | |
| Wi-Fi Standard | 802.11a/b/g/n |
Interfaces | |
| COM Total | 2 |
| RS-232 | 1 |
| RS-232/422/485 | 1 |
| USB Total | 4 |
| USB 2.0 | 2 |
| USB v3.x | 2 |
Extension Slots | |
| PCI Express x4 | 1 |
| Mini-PCIe/Mini Card | 2 |
Connectors | |
| Connectors | DB9, DB15 VGA, HDMI, 2xRJ45 Ethernet, 4xUSB |
System Power Input | |
| Input Voltage AC | 90...260 V |
Dimensions and weight | |
| Width | 550 mm |
| Height | 360 mm |
| Depth | 65 mm |
Operating Conditions | |
| Operating Temperature | 0...40 °C |
