Construction | |
| Construction Chassis | Metal Chassis with Plastic component |
| Protection Level of Front Side (Panel) | IP66 |
| Protection Level of Chassis | IP54 |
| Type | Fanless |
Display | |
| Display Type | LCD TFT |
| Diagonal | 21.5 " |
| Maximum resolution | 1920x1080 Dots |
| Aspect Ratio | 16:9 |
| Brightness | 250 Cd/m2 |
| Contrast Ratio | 1000~1 |
Touch Screen | |
| Touch Screen Type | Capacitive |
CPU | |
| СPU Generation/Family | Whiskey Lake |
| Processor Installed | Intel Core i5-8365UE |
| Socket | CPU onboard |
| Max CPU frequency | 4.1 GHz |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 1xSODIMM |
| Maximum Memory | 32 GB |
| Assembly | Removable |
Ethernet | |
| Controller Type | Intel i211, Intel i219 |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 1 |
| RS-232 | 1 |
| USB Total | 4 |
| USB v3.x | 4 |
Drive interfaces | |
| M.2 | 1 |
Storage Cage | |
| Number Of Cage External | 1 |
| 2.5" Cage Intenal | 2 |
LED / Controls | |
| Controls | KeyPad |

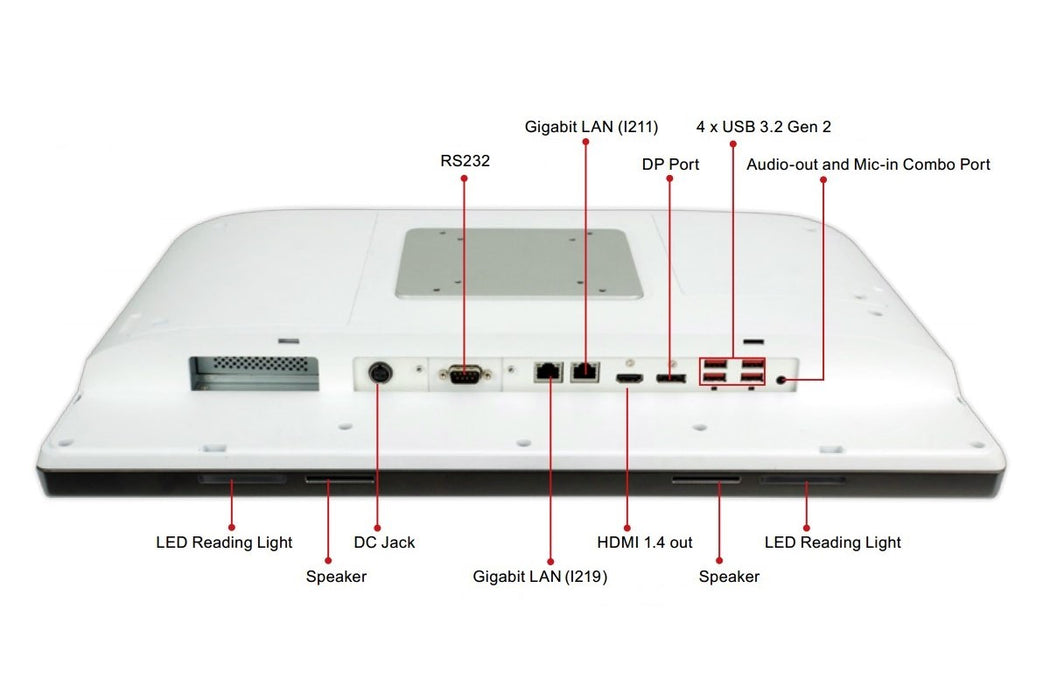

Connectors | |
| Connectors | DB9, HDMI, 2xRJ45 Ethernet, 4xUSB, DC Input |
System Power Input | |
| Input Voltage DC | 19...19 V |
Power Supply | |
| Type of Power Supply | Medical |
| Output Power | 150 W |
Dimensions and weight | |
| Width | 507.5 mm |
| Height | 335.5 mm |
| Depth | 64.1 mm |
Operating Conditions | |
| Operating Temperature | 0...40 °C |
Standards and Certifications | |
| Certifications | CE, FCC Class B |
