Construction | |
| Construction Chassis | Plastic Chassis with Aluminum Heatsink |

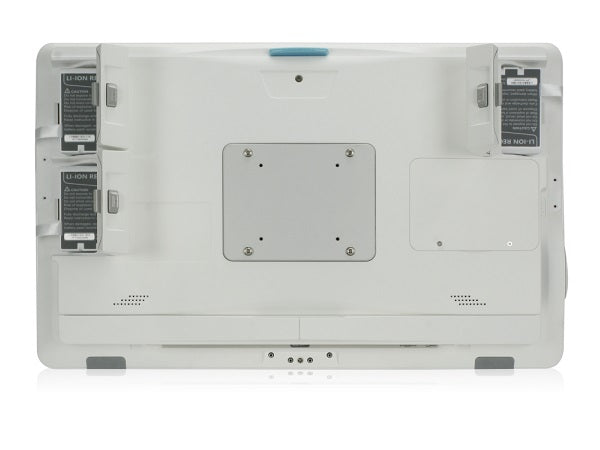

| Mounting Configuration | Wall VESA 100, Wall VESA 75 |
| Protection Level of Front Side (Panel) | IP65 |
| Type | Fanless |
Display | |
| Display Type | LCD TFT |
| Diagonal | 21.5 " |
| Maximum resolution | 1920x1080 Dots |
| Brightness | 250 Cd/m2 |
| Contrast Ratio | 1000~1 |
Touch Screen | |
| Touch Screen Type | Capacitive |
CPU | |
| Processor Installed | Intel Core i5-6300U |
| Max CPU frequency | 3 GHz |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 2xSODIMM |
| Default on Board Memory | 4 GB |
| Maximum Memory | 32 GB |
Ethernet | |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Wi-Fi | |
| Wi-Fi Standard | 802.11ac/a/b/g/n |
Interfaces | |
| COM Total | 2 |
| RS-232/422/485 | 2 |
| USB Total | 6 |
| USB 2.0 | 2 |
| USB v3.x | 4 |
Drive interfaces | |
| M.2 | 1 |
Extension Slots | |
| Total | 1 |
| Mini-PCIe/Mini Card | 1 |
LED / Controls | |
| LED | Battеry Status, Power LED, RFID LED |
Connectors | |

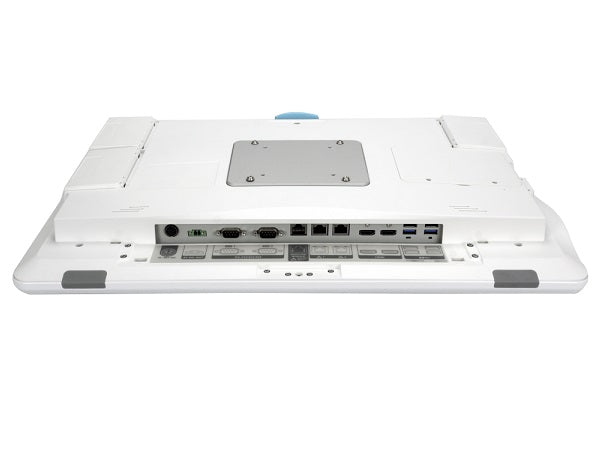

| Connectors | 2xHDMI, 2xRJ45 Ethernet, 6xUSB, Line Out, 4-pin DC input, 2xDB9 Male |
System Power Input | |
| Input Voltage DC | 12...28 V |
Power Supply | |
| Output Power | 150 W |
| Supported Types of Power Supply | Medical, External power adapter AC/DC |
Software | |
| Operating System Compatibility | Windows Embedded Standard 7, Windows Embedded Standard 8, Windows IoT Enterprise 10 |
Dimensions and weight | |
| Width | 543 mm |
| Height | 350 mm |
| Depth | 61 mm |
Operating Conditions | |
| Operating Temperature | 0...40 °C |
Standards and Certifications | |
| Certifications | CE, FCC Class B |
| Medicine | IEC 60601-1 |
