Construction | |
| Construction Chassis | Metal Chassis |

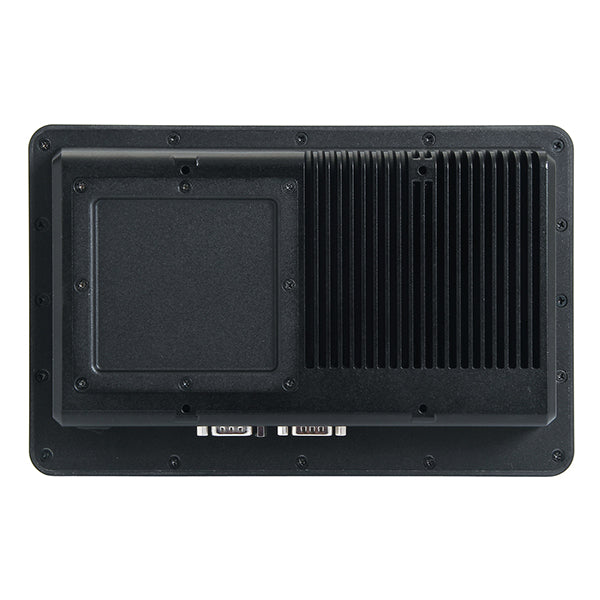

| Mounting Configuration | Wall VESA 100 |
| Protection Level of Front Side (Panel) | IP65 |
| Type | Fanless |
Display | |

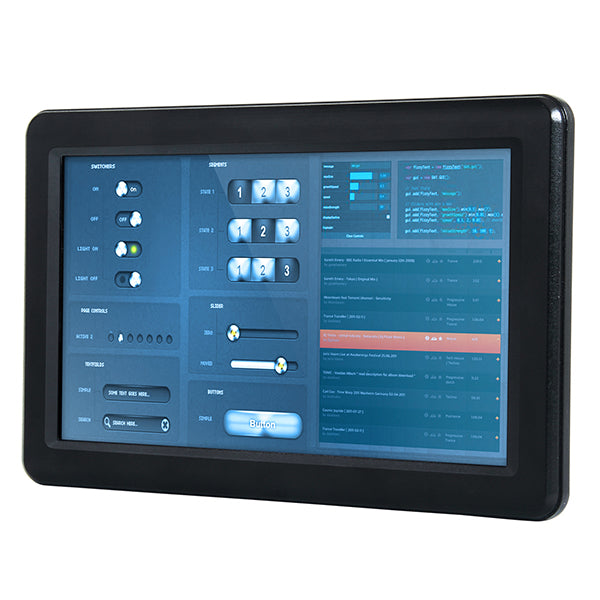

| Display Type | LCD TFT |
| Diagonal | 9 " |
| Maximum resolution | 1024x600 Dots |
| Brightness | 300 Cd/m2 |
| Contrast Ratio | 500~1 |
Touch Screen | |
| Touch Screen Type | Resistive |
CPU | |
| Processor Installed | Vortex86DX2 |
| Max CPU frequency | 0.93 GHz |
Memory | |
| Form-factor | DDR2 |
| Default on Board Memory | 2 GB |
| Assembly | Fixed on Board |
Ethernet | |
| Total Ethernet | 2 |
| 10/100 Mbit/s | 1 |
Interfaces | |
| COM Total | 7 |
| RS-232/422/485 | 7 |
| USB Total | 3 |
| USB 2.0 | 3 |
Audio | |
| Audio Controller | Realtek ALC262 |
Drive interfaces | |
| CompactFlash Slots | 1 |
| SD Slots | 1 |
LED / Controls | |
| LED | Power LED |
| Controls | On/Off |
Additional Functions | |
| Watchdog timer type | Software |
Connectors | |

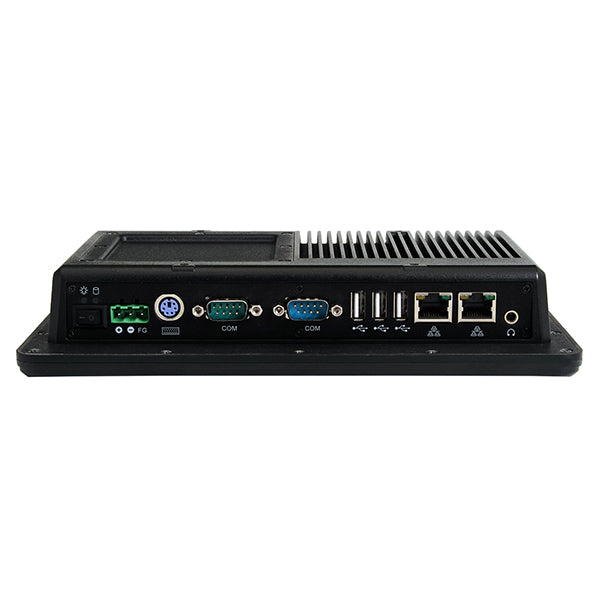

| Connectors | PS/2 Keyboard/Mouse, 2xRJ45, 3xUSB, Audio Out, DC input (terminal block) |
System Power Input | |
| Input Voltage DC | 12...24 V |
Software | |
| Operating System Compatibility | MS DOS, Windows CE 5.0, Windows CE 6.0, Windows XP, Linux OS |
Dimensions and weight | |
| Width | 242 mm |
| Height | 156.5 mm |
| Depth | 44 mm |
Operating Conditions | |
| Operating Temperature | 0...50 °C |
Standards and Certifications | |
| Certifications | CE, FCC, VCCI |
