Construction | |
| Construction Chassis | Metal Chassis |
| Mounting Configuration | Built-in, Panel, Wall, Wall VESA 100 |
| Protection Level of Front Side (Panel) | IP65 |
| Type | Fanless |
Display | |
| Display Type | LCD TFT |
| Diagonal | 10.4 " |
| Maximum resolution | 800x600 Dots |
| Aspect Ratio | 4:3 |
| Brightness | 500 Cd/m2 |
| Contrast Ratio | 500~1 |
Touch Screen | |
| Touch Screen Type | Resistive |
CPU | |
| Processor Installed | Vortex86DX3 |
| Max CPU frequency | 1 GHz |
Chipset | |
| Chipset | Vortex86 System-on-Chip |
Memory | |
| Form-factor | DDR2 |
| Default on Board Memory | 1 GB |
| Assembly | Fixed on Board |
Graphic | |
| Graphic Controller | Integrated in CPU |
Ethernet | |
| Total Ethernet | 1 |
| 10/100 Mbit/s | 1 |
Interfaces | |
| COM Total | 7 |
| RS-232/422/485 | 7 |
| USB Total | 3 |
| USB 2.0 | 3 |
Audio | |
| Audio Controller | Realtek ALC262 |
Drive interfaces | |
| mSATA | 1 |
| CompactFlash Slots | 1 |
LED / Controls | |
| Controls | On/Off |
Additional Functions | |
| Watchdog timer type | Software |

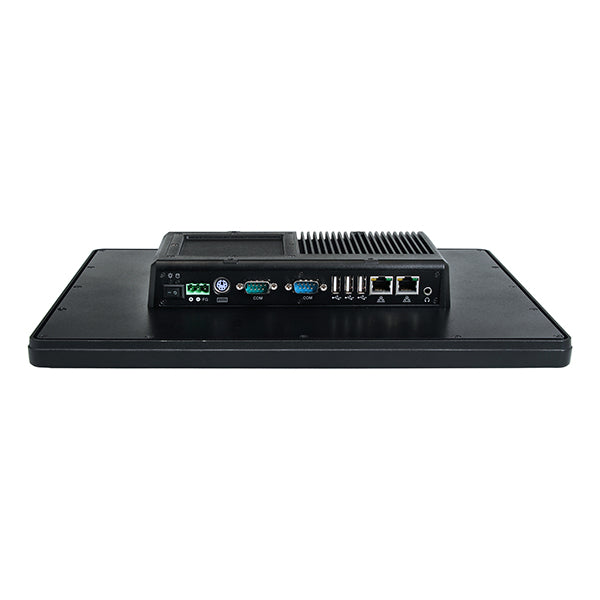

Connectors | |
| Connectors | PS/2 Keyboard, 3xUSB, Line Out, DC input (terminal block) |
System Power Input | |
| Input Voltage DC | 12...24 V |
| Power Consumption | 24 W |
Power Supply | |
| Supported Types of Power Supply | External power adapter AC/DC |
Software | |
| Operating System Compatibility | MS DOS, Windows CE 6.0, Windows XP, Windows Embedded Standard 7, Linux OS, Windows 7 Professional |
Dimensions and weight | |
| Width | 273.4 mm |
| Height | 219.8 mm |
| Depth | 49 mm |
Operating Conditions | |
| Operating Temperature | 0...50 °C |
Standards and Certifications | |
| Certifications | CE, FCC, VCCI |
