Construction | |
| Construction Chassis | Metal Chassis with Aluminium Heatsink |
| Mounting Configuration | Desktop, Panel, Wall, Wall VESA 100 |
| Protection Level of Front Side (Panel) | IP65 |
| Type | Fanless |

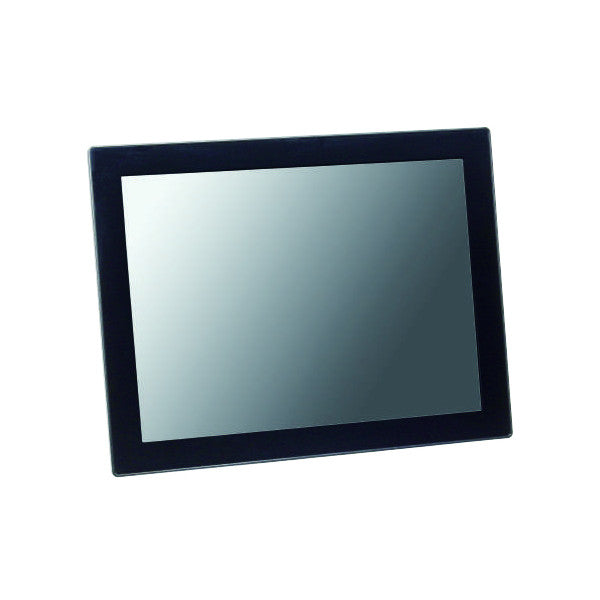

Display | |
| Display Type | LED |
| Diagonal | 15 " |
| Maximum resolution | 1024x768 Dots |
| Aspect Ratio | 4:3 |
| Brightness | 350 Cd/m2 |
| Contrast Ratio | 600~1 |
Touch Screen | |
| Touch Screen Type | Capacitive |
CPU | |
| Processor Installed | Vortex86DX3 |
| Socket | CPU onboard |
| Max CPU frequency | 1 GHz |
Memory | |
| Form-factor | DDR3 |
| ECC | No |
| Default on Board Memory | 2 GB |
| Maximum Memory | 2 GB |
Ethernet | |
| Total Ethernet | 2 |
| 10/100 Mbit/s | 2 |
Interfaces | |
| COM Total | 7 |
| RS-232/422/485 | 7 |
| USB Total | 3 |
| USB 2.0 | 3 |
Audio | |
| Audio Controller | Realtek ALC262 |
Drive interfaces | |
| CompactFlash Slots | 1 |
Storage Cage | |
| Number Of Cage External | 1 |
| 2.5" Cage Intenal | 1 |
LED / Controls | |
| Controls | On/Off, 1xReset |
Additional Functions | |
| Watchdog timer type | Software |

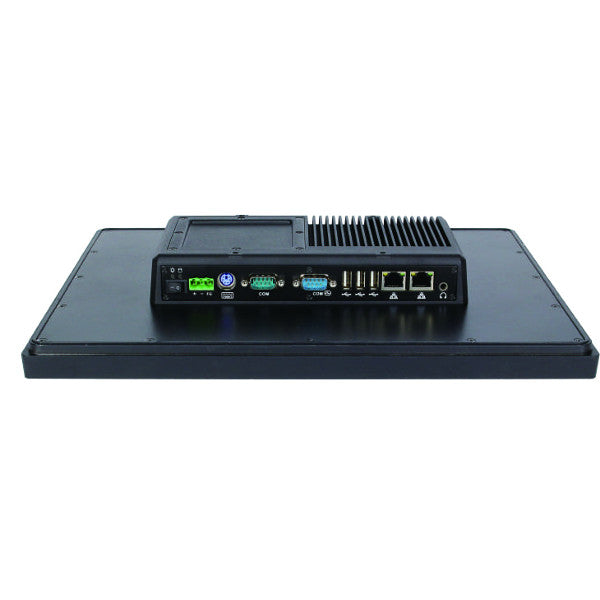

Connectors | |
| Connectors | Line Out, DC Input, PS/2 Keyboard, 3xUSB, 2xRJ45 Ethernet |
System Power Input | |
| Input Voltage DC | 12...24 V |
| Power Consumption | 24 W |
Power Supply | |
| Supported Types of Power Supply | External power adapter AC/DC |
Software | |
| Operating System Compatibility | Linux OS, Windows XP, Windows CE 6.0, Windows Embedded Standard 2009, Windows Embedded Standard 7 |
Dimensions and weight | |
| Width | 354.85 mm |
| Height | 280.85 mm |
| Depth | 54.9 mm |
Operating Conditions | |
| Operating Temperature | 0...50 °C |
Standards and Certifications | |
| Certifications | FCC, CE, VCCI |
| Vibration And Shock | IEC 60068-2-27 |
