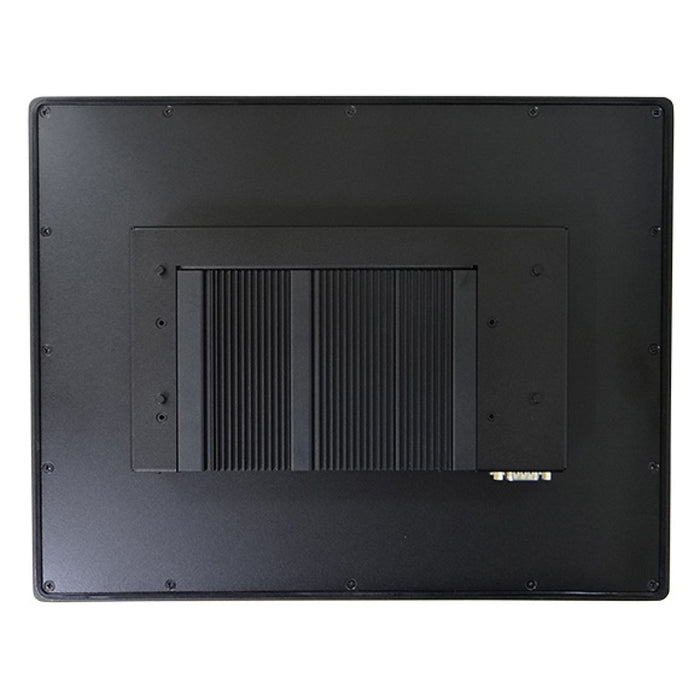

Construction | |
| Construction Chassis | Aluminium Chassis |
| Mounting Configuration | Built-in, Panel |
| Protection Level of Front Side (Panel) | IP65 |
| Type | Fanless |

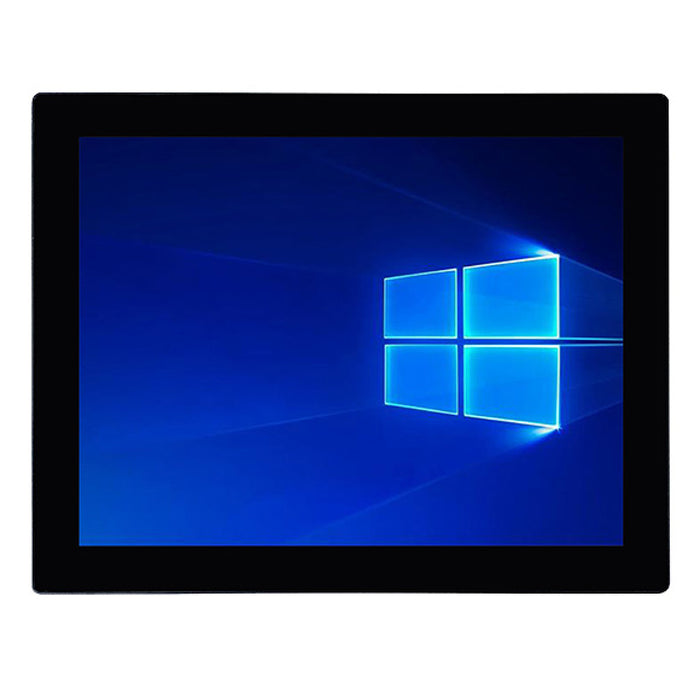

Display | |
| Display Type | LCD TFT |
| Diagonal | 15 " |
| Maximum resolution | 1024x768 Dots |
| Brightness | 350 Cd/m2 |
Touch Screen | |
| Touch Screen Type | Capacitive |
CPU | |
| СPU Generation/Family | Elkhart Lake |
| Processor Installed | Intel Celeron J6412 |
| Socket | FCBGA1493 |
| Max CPU frequency | 2.6 GHz |
Chipset | |
| Chipset | Intel SoC |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 2xSODIMM 260-pin |
| ECC | No |
| Maximum Memory | 32 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Integrated in CPU, Intel UHD Graphics |
Ethernet | |
| Controller Type | Intel i226V |
| Total Ethernet | 2 |
| 2,5 Gbit/s | 2 |
Interfaces | |
| COM Total | 2 |
| RS-232 | 1 |
| RS-232/422/485 | 1 |
| USB Total | 6 |
| USB 2.0 | 3 |
| USB v3.x | 3 |
Audio | |
| Audio Controller | Realtek ALS888S |
Drive interfaces | |
| M.2 | 1 |
Extension Slots | |
| Total | 3 |
| M.2 | 3 |
| M.2 Form Factor | 2280 M, 2242 M, 2230 E, 3042 B |
LED / Controls | |
| LED | Power LED |
| Controls | On/Off |
Connectors | |
| Connectors | 2xDB9, 2xHDMI, 2xRJ45 Ethernet, 6xUSB, Mic In, Line Out, DC Input |
System Power Input | |
| Input Voltage DC | 12...24 V |
Power Supply | |
| Supported Types of Power Supply | External power adapter AC/DC |
Software | |
| Operating System Compatibility | Windows 10, Windows 11, Linux OS |
Dimensions and weight | |
| Width | 359.63 mm |
| Height | 282.98 mm |
| Depth | 61.54 mm |
Operating Conditions | |
| Operating Temperature | 0...60 °C |
| Humidity | 10-90% |
Standards and Certifications | |
| Certifications | CE, VCCI, FCC |
