Construction | |
| Construction Chassis | Metal Chassis |

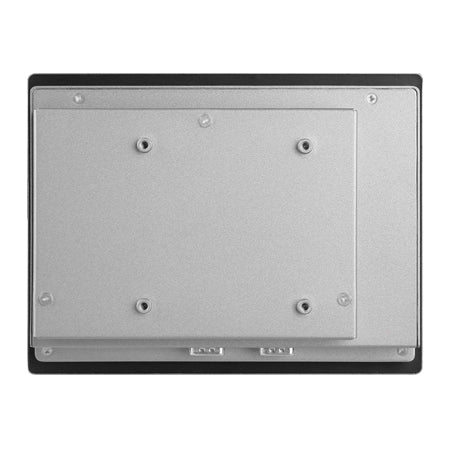

| Mounting Configuration | Panel, Wall, Wall VESA 75 |
| Protection Level of Front Side (Panel) | IP65 |
| Type | Fanless |
Display | |
| Display Type | LCD TFT |
| Diagonal | 6.5 " |
| Maximum resolution | 640x480 Dots |
| Aspect Ratio | 4:3 |
| Brightness | 800 Cd/m2 |
| Contrast Ratio | 600~600 |
Touch Screen | |
| Touch Screen Type | Resistive |
CPU | |
| Processor Installed | Intel Celeron N2807 |
| Max CPU frequency | 2.16 GHz |
Chipset | |
| Chipset | Intel Bay Trail-I SoC |
Memory | |
| Form-factor | DDR3L |
| Socket Type | 1xSODIMM |
| Maximum Memory | 4 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Integrated in CPU |
Ethernet | |
| Controller Type | Intel i211 |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 2 |
| RS-232 | 1 |
| RS-232/422/485 | 1 |
| USB Total | 3 |
| USB 2.0 | 2 |
| USB v3.x | 1 |
Drive interfaces | |
| mSATA | 1 |
Extension Slots | |
| Total | 1 |
| Mini-PCIe/Mini Card | 1 |
Additional Functions | |
| Watchdog timer type | Software |
Connectors | |

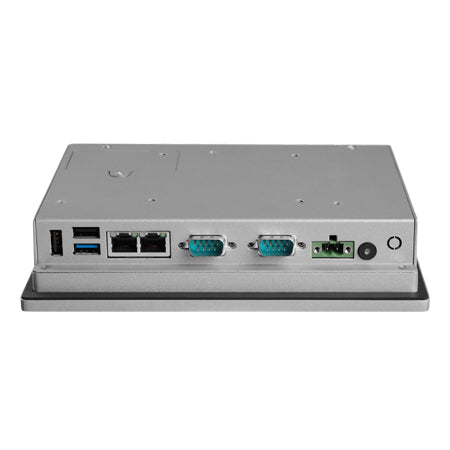

| Connectors | 2xDB9, 2xRJ45 Ethernet, 3xUSB, DC input (terminal block) |
System Power Input | |
| Input Voltage DC | 12...24 V |
| Power Consumption | 11 W |
Software | |
| Operating System Compatibility | Android, Windows Embedded Compact 7, Windows 7, Windows Embedded Standard 7, Linux OS, Windows 8.1, Windows 10 |
Dimensions and weight | |
| Width | 197.6 mm |
| Height | 150.6 mm |
| Depth | 41 mm |
Operating Conditions | |
| Operating Temperature | 0...50 °C |
| Vibration | 2Grms |
| Shock | 10 G |
Standards and Certifications | |
| Certifications | CE, FCC Class B |
| Safety | CCC, CB, UL, BSMI |
| Vibration And Shock | IEC 60068-2-27, IEC 60068-2-64 |
