Construction | |
| Construction Chassis | Aluminium Chassis |
| Mounting Configuration | Wall, Wall VESA 75 |
| Protection Level of Front Side (Panel) | IP65 |
| Type | Fanless |

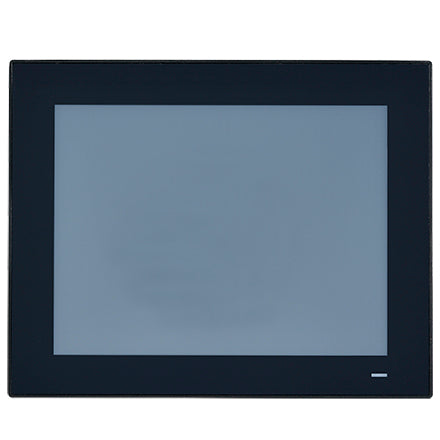

Display | |
| Display Type | LCD TFT |
| Diagonal | 10.4 " |
| Maximum resolution | 800x600 Dots |
| Brightness | 400 Cd/m2 |
| Contrast Ratio | 700~1 |
Touch Screen | |
| Touch Screen Type | Resistive |
CPU | |
| СPU Generation/Family | Apollo Lake |
| Processor Installed | Intel Atom E3940 |
| Socket | CPU onboard |
| Max CPU frequency | 1.8 GHz |
Memory | |
| Form-factor | DDR3L |
| Socket Type | 1xSODIMM |
| Maximum Memory | 8 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Integrated in CPU |
Ethernet | |
| Controller Type | Intel i210 |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 5 |
| RS-232 | 4 |
| RS-422/485 | 1 |
| USB Total | 4 |
| USB v3.x | 4 |
Drive interfaces | |
| mSATA | 1 |
Storage Cage | |
| Number Of Cage External | 1 |
| 2.5" Cage Intenal | 1 |
Extension Slots | |
| Total | 1 |
| Mini-PCIe/Mini Card | 1 |

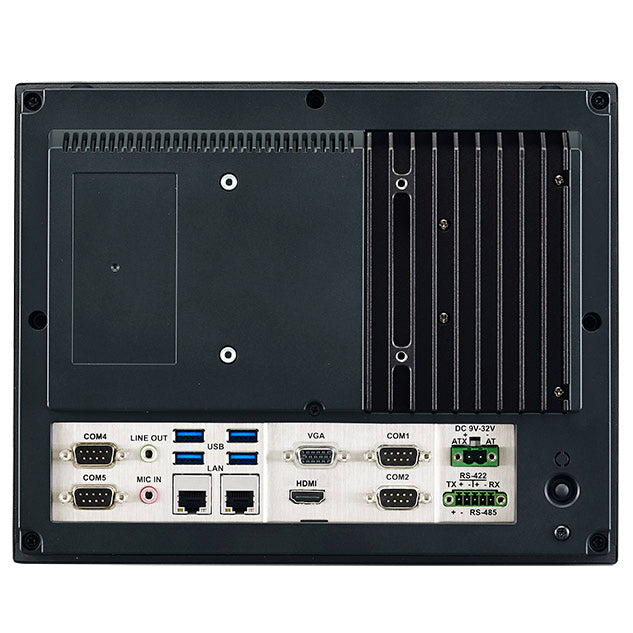

Connectors | |
| Connectors | 5xDB9, DB15 VGA, HDMI, 2xRJ45 Ethernet, 4xUSB, DC Input |
System Power Input | |
| Input Voltage DC | 9...32 V |
Software | |
| Operating System Compatibility | Android, Linux OS, Windows IoT Enterprise 10, Windows 10 |
Dimensions and weight | |
| Width | 271.8 mm |
| Height | 216.8 mm |
| Depth | 57.5 mm |
Operating Conditions | |
| Operating Temperature | 0...50 °C |
Standards and Certifications | |
| Certifications | CE, FCC |
