Construction | |
| Mounting Configuration | Desktop, Panel, Wall, Wall VESA 75 |
| Protection Level of Front Side (Panel) | IP65 |
| Type | Fanless |

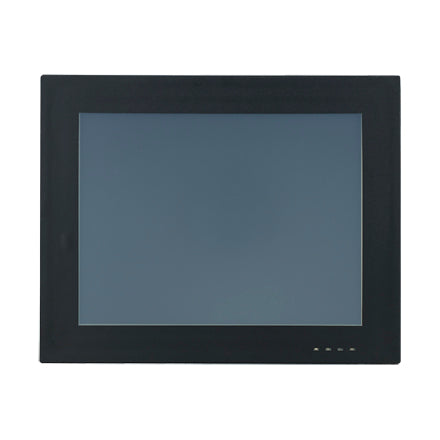

Display | |
| Display Type | LCD TFT |
| Diagonal | 15 " |
| Maximum resolution | 1024x768 Dots |
| Brightness | 500 Cd/m2 |
| Contrast Ratio | 2500~1 |
Touch Screen | |
| Touch Screen Type | Resistive |
CPU | |
| Processor Installed | Intel Atom E3845 |
| Max CPU frequency | 1.91 GHz |
Memory | |
| Form-factor | DDR3L |
| Maximum Memory | 8 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Integrated in CPU |
Ethernet | |
| Controller Type | Intel i210 10/100/1000 Mbps |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 3 |
| RS-232 | 2 |
| RS-422/485 | 1 |
| USB Total | 4 |
| USB 2.0 | 3 |
| USB v3.x | 1 |
Drive interfaces | |
| mSATA | 1 |
Storage Cage | |
| Number Of Cage External | 1 |
| 2.5" Cage Intenal | 1 |
Extension Slots | |
| Total | 3 |
| PCI Express x1 | 1 |
| Mini-PCIe/Mini Card | 1 |
| PCI | 1 |
LED / Controls | |
| LED | 1xOn/Off LED |
| Controls | On/Off |
Additional Functions | |
| Watchdog timer type | Software |

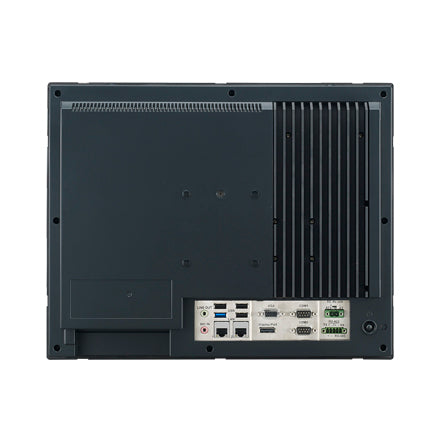

Connectors | |
| Connectors | 2xDB9, DB15 VGA, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, Display Port, DC input (terminal block), Terminal block |
System Power Input | |
| Input Voltage DC | 9...32 V |
Power Supply | |
| Supported Types of Power Supply | External power adapter AC/DC |
Software | |
| Operating System Compatibility | Windows 7, Linux OS, Windows 8.1, Windows 10 |
Dimensions and weight | |
| Width | 392.26 mm |
| Height | 313.56 mm |
| Depth | 55.15 mm |
Operating Conditions | |
| Operating Temperature | 0...50 °C |
| Vibration | Operating Random Vibration Test 5 ~ 500Hz. 1Grms @with HDD. follow IEC 60068-2-64 |
| Shock | Operating 10 G peak acceleration (11 ms duration). follow IEC 60068-2-27 |
Standards and Certifications | |
| Certifications | CE, FCC Class A |
| Safety | CCC, CB, UL, BSMI |
