Construction | |
| Mounting Configuration | Panel, Wall, Wall VESA 100 |
| Protection Level of Front Side (Panel) | IP65 |
| Type | Fanless |
Display | |
| Display Type | LCD TFT |
| Diagonal | 15.6 " |
| Maximum resolution | 1920x1080 Dots |
| Aspect Ratio | 16:9 |
| Brightness | 450 Cd/m2 |
Touch Screen | |
| Touch Screen Type | Capacitive |
CPU | |
| Processor Installed | Intel Core i5-7300U |
| Socket | CPU onboard |
| Max CPU frequency | 3.5 GHz |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 1xSODIMM |
| Maximum Memory | 16 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Integrated in CPU |
Ethernet | |
| Controller Type | Intel i211-AT 10/100/1000 Mbps, Intel i219-LM |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 3 |
| RS-232 | 2 |
| RS-422/485 | 1 |
| USB Total | 4 |
| USB v3.x | 4 |
Drive interfaces | |
| M.2 | 1 |
| mSATA | 1 |
Storage Cage | |
| Number Of Cage External | 1 |
| 2.5" Cage Intenal | 1 |
Extension Slots | |
| PCI Express x4 | 1 |
| Mini-PCIe/Mini Card | 1 |
LED / Controls | |
| Controls | On/Off, AT/ATX Switch |
Additional Functions | |
| Watchdog timer type | Software |
Connectors | |

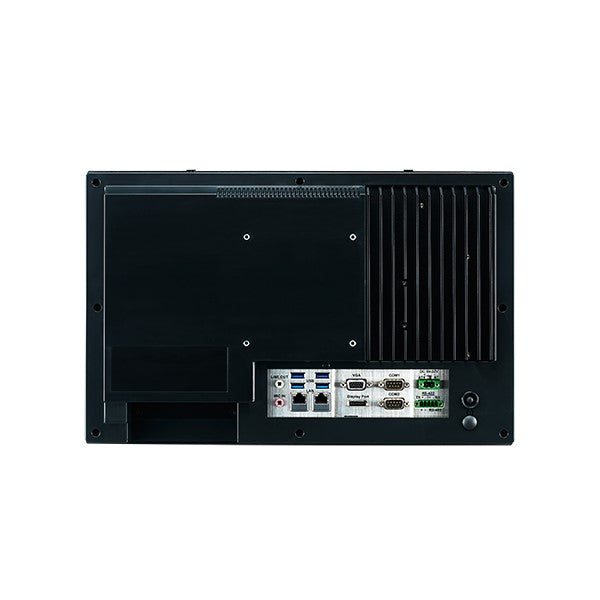

| Connectors | 3xDB9, DB15 VGA, 2xRJ45 Ethernet, 4xUSB, Audio, Display Port, DC input (terminal block) |
System Power Input | |
| Input Voltage DC | 9...32 V |
Software | |
| Operating System Compatibility | Linux OS, Windows 10 |
Dimensions and weight | |
| Width | 419.7 mm |
| Height | 269 mm |
| Depth | 59 mm |
Operating Conditions | |
| Operating Temperature | 0...50 °C |
Standards and Certifications | |
| Certifications | CE, FCC Class B |
| Safety | CCC, CB, UL, BSMI |
