Construction | |
| Mounting Configuration | Desktop, Wall, Wall VESA 75, Arm |
| Protection Level of Front Side (Panel) | IP65 |
| Type | Fanless |
Display | |
| Display Type | LCD TFT |
| Diagonal | 18.5 " |
| Maximum resolution | 1366x768 Dots |
Touch Screen | |
| Touch Screen Type | Capacitive |
CPU | |
| СPU Generation/Family | Apollo Lake |
| Processor Installed | Intel Pentium N4200 |
| Socket | CPU onboard |
| Max CPU frequency | 2.5 GHz |
Memory | |
| Form-factor | DDR3L |
| Socket Type | 1xSODIMM |
| Maximum Memory | 8 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Integrated in CPU |
Ethernet | |
| Controller Type | Intel i211-AT 10/100/1000 Mbps |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 2 |
| RS-232 | 1 |
| RS-232/422/485 | 1 |
| USB Total | 4 |
| USB 2.0 | 2 |
| USB v3.x | 2 |
Drive interfaces | |
| mSATA | 1 |
Storage Cage | |
| Number Of Cage External | 1 |
| 2.5" Cage Intenal | 1 |
Extension Slots | |
| Total | 1 |
| Mini-PCIe/Mini Card | 1 |
Connectors | |

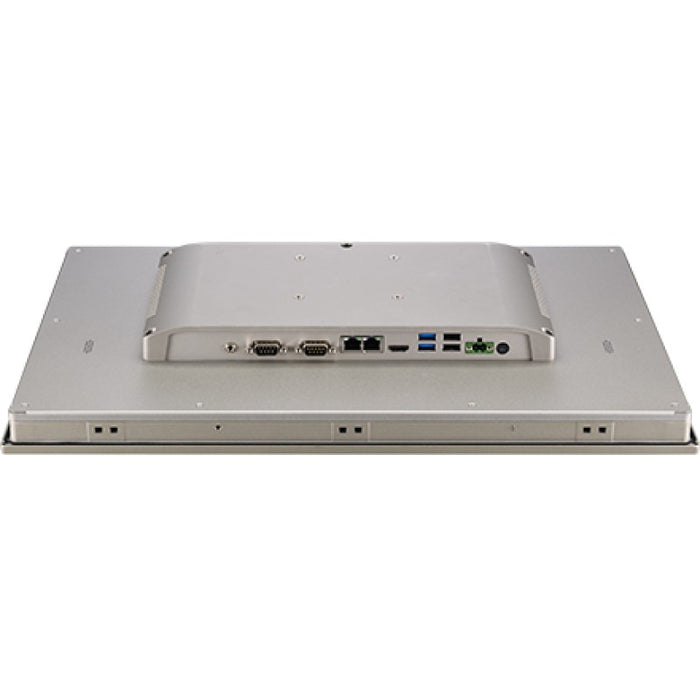

| Connectors | 2xDB9, HDMI, 2xRJ45 Ethernet, 4xUSB, Line Out, DC input (terminal block) |
System Power Input | |
| Input Voltage DC | 12...24 V |
| Power Consumption | 35 W |
Software | |
| Operating System Compatibility | Android, Linux OS, Windows 10 |
Dimensions and weight | |
| Width | 488 mm |
| Height | 309 mm |
| Depth | 45 mm |
Operating Conditions | |
| Operating Temperature | 0...50 °C |
Standards and Certifications | |
| Certifications | CE, FCC Class B, EN 60601 |
