Construction | |
| Construction Chassis | Plastic Chassis |
| Mounting Configuration | Wall |
| Protection Level of Front Side (Panel) | IP65 |

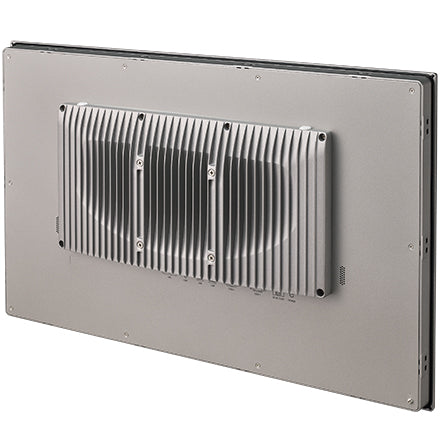

| Type | Fanless |
Display | |
| Display Type | LCD TFT |
| Diagonal | 23.8 " |
| Maximum resolution | 1920x1080 Dots |
| Aspect Ratio | 16:9 |
| Brightness | 350 Cd/m2 |
Touch Screen | |
| Touch Screen Type | Capacitive |
CPU | |
| СPU Generation/Family | Kaby Lake |
| Processor Installed | Intel Core i3-7100U |
| Max CPU frequency | 2.4 GHz |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 1xSODIMM |
| Maximum Memory | 16 GB |
Ethernet | |
| Controller Type | Intel i211-AT 10/100/1000 Mbps, Intel i219-LM |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| RS-232 | 2 |
| RS-232/422/485 | 1 |
| USB 2.0 | 2 |
| USB v3.x | 2 |
Drive interfaces | |
| mSATA | 1 |
Storage Cage | |
| 2.5" Cage Intenal | 1 |
Extension Slots | |
| Mini-PCIe/Mini Card | 1 |
LED / Controls | |
| LED | Power LED |
| Controls | On/Off |
Additional Functions | |
| Watchdog timer type | Software |
Connectors | |
| Internal Ports | SATA 3 |

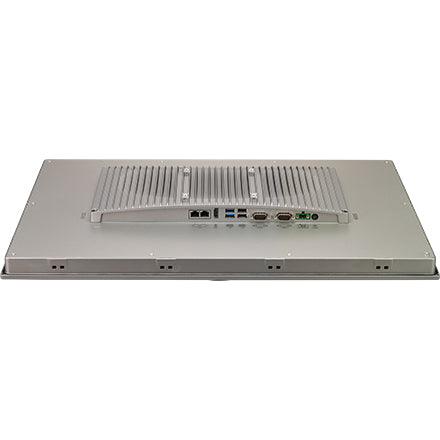

| Connectors | 2xDB9, HDMI, 2xRJ45, 4xUSB, DC Input |
System Power Input | |
| Input Voltage DC | 12...24 V |
| Power Consumption | 80 W |
Software | |
| Operating System Compatibility | Linux OS, Windows 10 |
Dimensions and weight | |
| Width | 595.87 mm |
| Height | 374.13 mm |
| Depth | 61.85 mm |
Operating Conditions | |
| Operating Temperature | 0...45 °C |
| Vibration | 5 ~ 500Hz. 1Grms @with HDD; 2Grms @with SSD |
| Shock | 10 G peak acceleration (11 ms duration) |
Standards and Certifications | |
| Certifications | CE, FCC Class B, CB |
| Medicine | EN 60601-1 |
| Safety | CCC, UL, BSMI |
| Vibration And Shock | IEC 60068-2-27 |
