Construction |
| Construction Chassis | Metal Chassis |
| Mounting Configuration | Wall, Desktop, Panel, 19" Rackmount, Wall VESA 100, Arm |
| Protection Level of Front Side (Panel) | IP65 |
| Type | Fanless |
Display |
| Display Type | LCD TFT |
| Diagonal | 12.1 " |
| Maximum resolution | 1024x768 Dots |
| Aspect Ratio | 4:3 |
| Brightness | 500 Cd/m2 |
| Contrast Ratio | 1000~1 |
| Input Interface | HDMI |
Touch Screen |
| Touch Screen Type | Capacitive |
CPU |
| СPU Generation/Family | Alder Lake |
| Processor Installed | Intel Core i3-1220P |
| Max CPU frequency | 4.4 GHz |
Memory |
| Form-factor | DDR4 |
| Socket Type | Soldered |
| Default on Board Memory | 8 GB |
| Maximum Memory | 8 GB |
| Assembly | Fixed on Board |
Graphic |
| Graphic Controller | Integrated in CPU |
Ethernet |
| Controller Type | Intel i225LM, Intel i225V, Intel i226-LM, Intel i226V |
| Total Ethernet | 2 |
| 2,5 Gbit/s | 2 |
Interfaces |
| COM Total | 4 |
| RS-232 | 2 |
| RS-232/422/485 | 2 |
| USB Total | 5 |
| USB 2.0 | 1 |
| USB v3.x | 4 |
Extension Slots |
| Total | 3 |
| M.2 | 3 |
LED / Controls |
| LED | Power LED |
| Controls | On/Off |

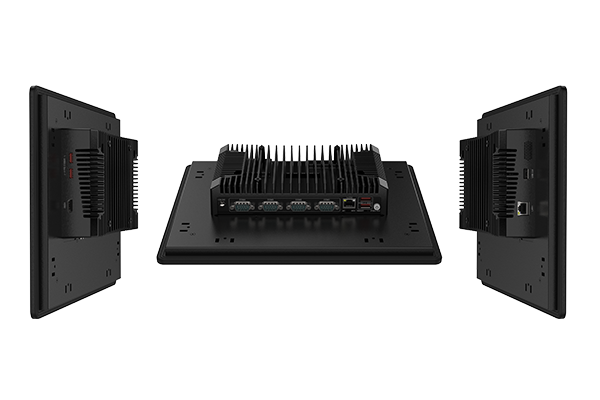

Connectors |
| Connectors | 5xUSB, 2xRJ45, 4xDB9, HDMI |
System Power Input |
| Input Voltage DC | 12...12 V |
Power Supply |
| Supported Types of Power Supply | External power adapter AC/DC |
Software |
| Operating System Compatibility | Windows 10, Windows 11, Linux OS |
Dimensions and weight |
| Width | 420 mm |
| Height | 360 mm |
| Depth | 200 mm |
Operating Conditions |
| Operating Temperature | -10...50 °C |
| Humidity | 10-95% |
Standards and Certifications |
| Certifications | CE/FCC |
