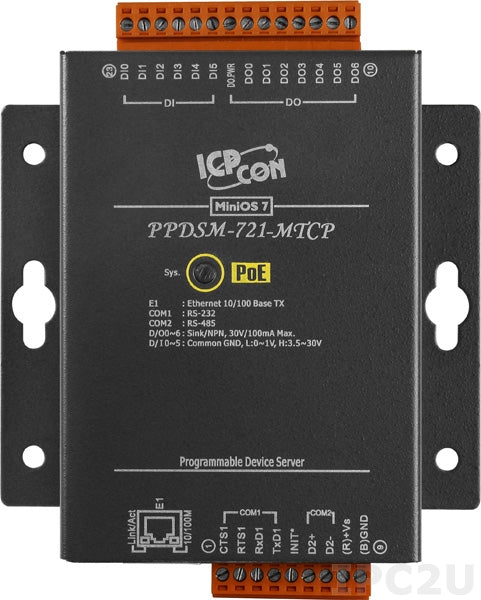

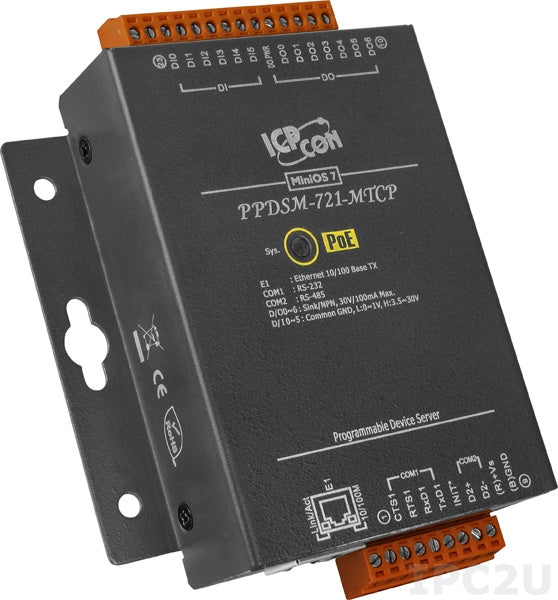

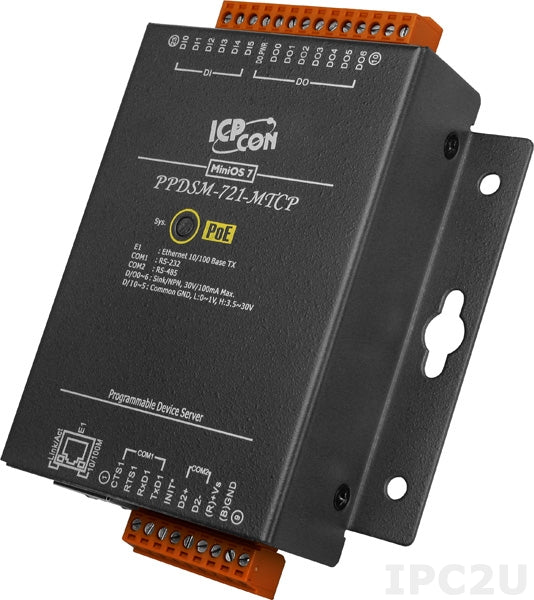

PPDSM-721-MTCP

Name: PPDSM-721-MTCP
Brand: ICP DAS
SKU: 05758100
Availability: InStock

ICP DAS

Ціна за запитом

Programmable Device Server with PoE, Modbus Gateway, 1 RS-232 port and 1 RS-485 port with Metal Case

Специфікація

Specification

Ethernet
10/100 Mbit/s	1
Interfaces
COM Total	2
RS-232	1
RS-485	1
Supported Protocols
Industrial Protocols	Modbus TCP server, Modbus RTU master, Modbus ASCII master
Digital Input
Total channels of digital input	6
Digital Output
Total channels of digital output	7
System Power Input
Input Voltage DC	12...48 V
Power over Ethernet (PoE)	PoE, IEEE 802.3af
Operating Conditions
Operating Temperature	-25...75 °C
Construction
Construction Chassis	Metal Chassis
Mounting Configuration	Wall, DIN-Rail mount
Dimensions and weight
Width	88 mm
Depth	28 mm
Height	123 mm
Connectors
Connectors	Screw Terminal
