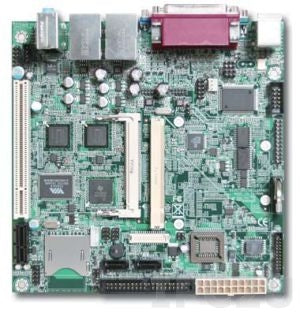

PQ7-C200

Name: PQ7-C200
Brand: Portwell
SKU: 05874400
Availability: InStock

Portwell

Ціна за запитом

Carrier board PQ7 Mini-ITX Form Factor, 2xGbE, Mini PCI-E, LVDS, Audio, VGA, 2xSATA, IDE, LPT, PS2 KB/MS, 4xUSB

Специфікація

Specification

System Architecture
Form Factor	Mini-ITX
Construction
Type	Fanless
Graphic
Graphic Controller	Intel US15W SCH
Interfaces	LVDS, VGA
Ethernet
Controller Type	Intel 82541PI 10/100/1000 Mbps
Total Ethernet	2
10/100/1000 Mbit/s	2
Interfaces
COM Total	2
RS-232	1
RS-232/422/485	1
USB 2.0	4
LPT	LPT
Audio
Audio Controller	Realtek ALC262-VC2
Drive interfaces
SD Slots	1
Extension Slots
Total	3
PCI Express x1	1
Mini-PCI	1
PCI	1
Additional Functions
Watchdog timer type	Software
Connectors
Connectors	DB9, DB15 VGA, PS/2 Mouse, PS/2 Keyboard, 2xRJ45 Ethernet, 4xUSB, Audio (in/out/Mic), LPT
Dimensions and weight
Width	170 mm
Length	170 mm
Operating Conditions
Operating Temperature	0...60 °C
