Construction | |
| Construction Chassis | Plastic Chassis |

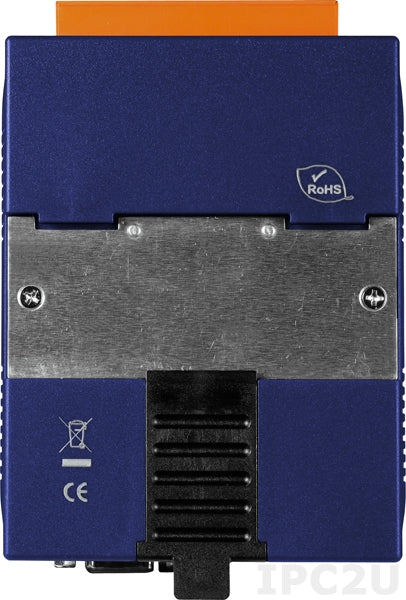

| Mounting Configuration | DIN-Rail mount |
Industrial Interfaces | |
| Profibus DP Version | 1 |
Supported Protocols | |
| Industrial Protocols | Profibus slave |
Digital Input | |
| Total channels of digital input | 8 |
| Type | Wet contact |
| Level of Logic "0" | 0~4 V |
| Level of Logic "1" | 10~50 V |
| Sink/Source | Sink, Source |
| Isolation of Digital Input | 3750 V |
Digital Output | |
| Total channels of digital output | 8 |
| Type | Open collector |
| Sink/Source | Sink |
| Output voltage | 10~40 V |
| Max. load current | 650 mA |
Connectors | |

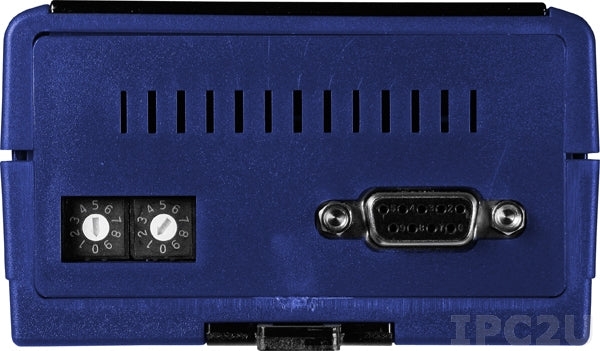

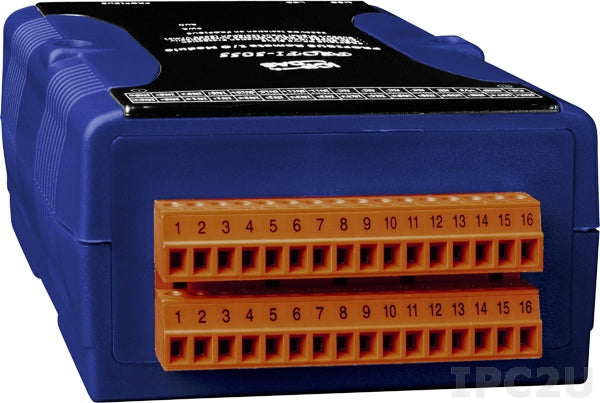

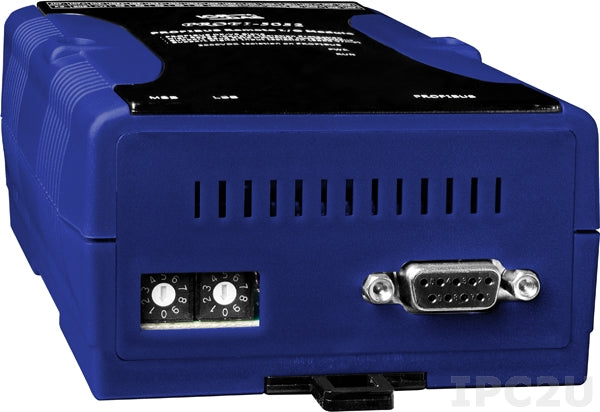

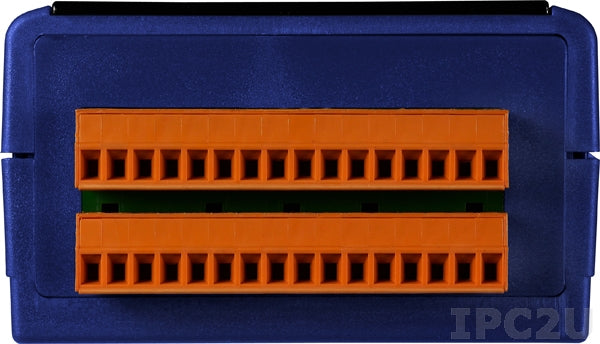

| Connectors | DB9, Screw Terminal |
Additional Functions | |
| Watchdog timer type | Hardware, Software |
System Power Input | |
| Input Voltage DC | 10...40 V |
Dimensions and weight | |
| Width | 91 mm |
| Depth | 52 mm |
| Height | 128 mm |
Operating Conditions | |
| Operating Temperature | -25...75 °C |
