Ціна за запитом

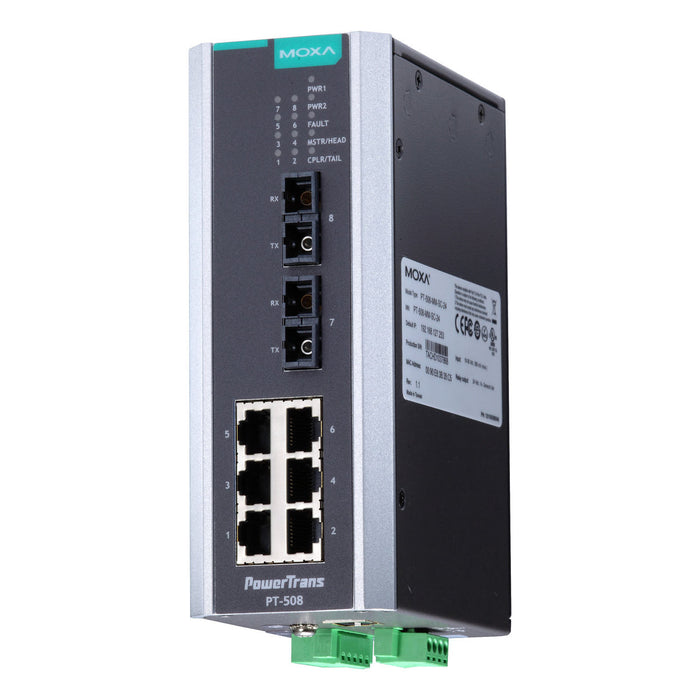

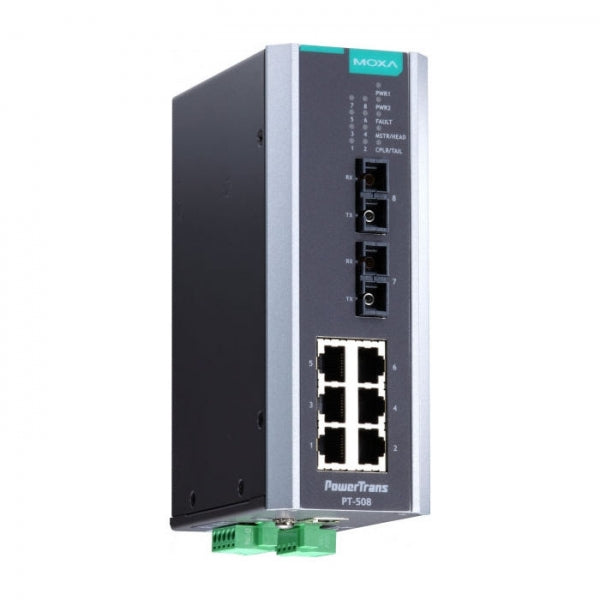

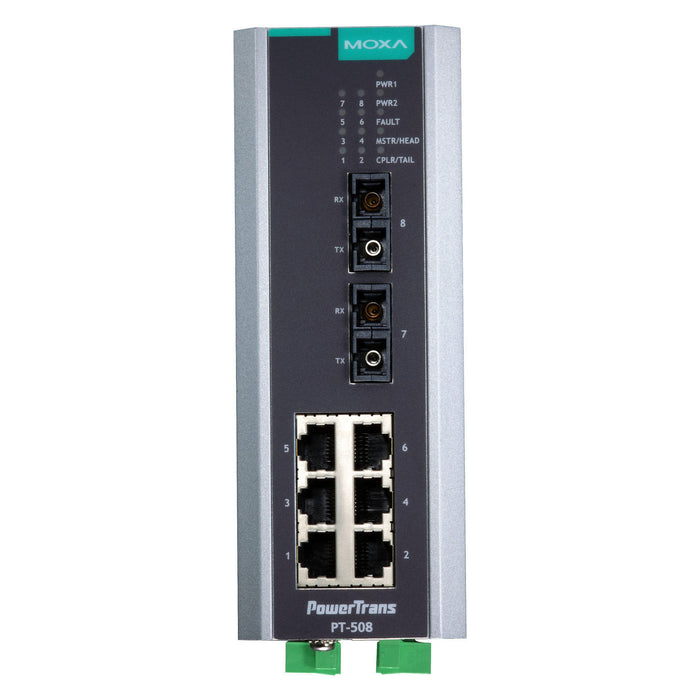

IEC 61850-3 managed Ethernet switch with 6 10/100BaseT(X) ports, and 2 100BaseFX single-mode ports with SC connectors, 1 power supply (48 VDC), -40...85C


Total Ethernet 8
10/100 Mbit/s 8
Type 10/100 Mbit/s 2xSC, 6xRJ-45


Number of Optical Ports 2xSC
Type of Fibre Optic single-mode

Switch Properties

Managed Yes
Switch Level Layer 2

Supported Protocols

Industrial Protocols EtherNet/IP, Modbus TCP
Managment Protocols IEEE 1588 PTP V2 (software based), IGMPv1/v2, DHCP Server/Client, DHCP Option 66/67/82, NTP Server/Client, SNTP, SMTP, SNMP Inform, SNMPv1/v2c/v3, BootP, GMRP, GVRP, HTTP, LLDP, RARP, RMON, Syslog, Telnet, TFTP
Security Protocols HTTPS, SSH
IEEE Standard IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control

LED / Controls

Setup of Operation Mode Telnet, Console Port, Web-interface


Connectors Console Port RS-232 (RJ-45)

System Power Input

Redundant power input Yes
Input Voltage DC Min 36 V
Input Voltage DC Max 72 V
Power Supply Reserve input Voltage DC Min 36 V
Power Supply Reserve input Voltage DC Max 72 V


Construction Chassis Metal Chassis
Mounting Configuration DIN-Rail mount
Protection Level of Chassis IP40

Dimensions and weight

Width 60 mm
Depth 110 mm
Height 160 mm

Operating Conditions

Operating Temperature Min -40 °C
Operating Temperature Max 85 °C

Standards and Certifications

EMI EN 55022, FCC Part 15
Power Automation IEC 61850-3, IEEE 1613
