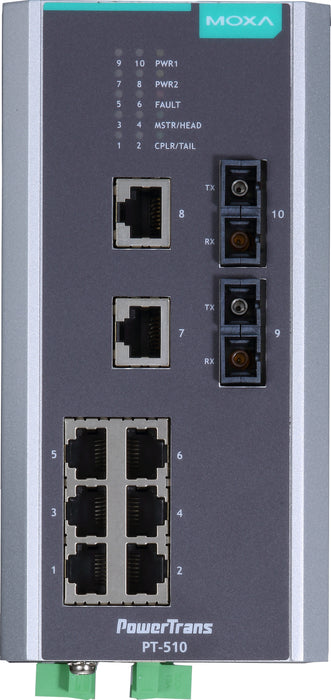

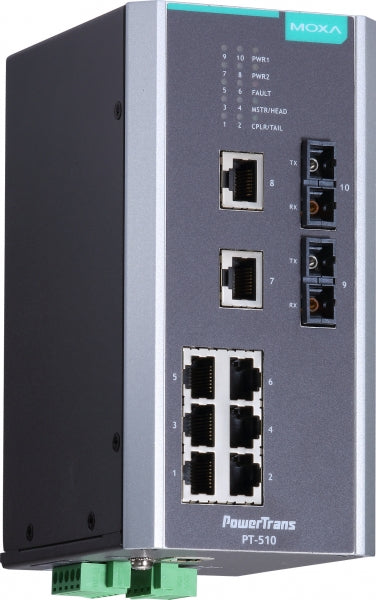

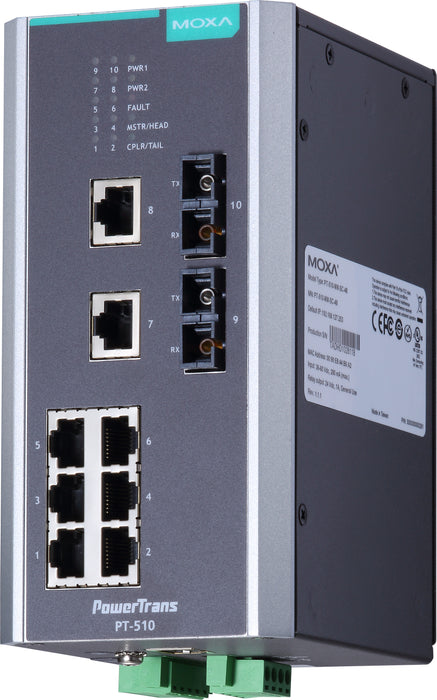

PT-510-MM-SC-48

Ціна за запитом
IEC 61850-3 managed DIN-Rail Ethernet switch, with 8 10/100BaseT(X) ports, and 2 100BaseFX multi-mode ports with SC connectors, 1 isolated power supply (48 VDC), -40 to 85C operating temperature

Specification

Ethernet

Total Ethernet10
10/100 Mbit/s10
Type 10/100 Mbit/s2xSC, 8xRJ-45

Fiber

Number of Optical Ports2xSC
Type of Fibre Opticmulti-mode

Switch Properties

ManagedYes
Switch LevelLayer 2

Supported Protocols

Industrial ProtocolsEtherNet/IP, Modbus TCP
Managment ProtocolsIEEE 1588 PTP V2 (software based), IGMPv1/v2, DHCP Server/Client, DHCP Option 66/67/82, NTP Server/Client, SNTP, SMTP, SNMP Inform, SNMPv1/v2c/v3, BootP, GMRP, GVRP, HTTP, LLDP, RARP, RMON, Syslog, Telnet, TFTP
Security ProtocolsHTTPS, SSH
IEEE StandardIEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control

LED / Controls

Setup of Operation ModeTelnet, Console Port, Web-interface

Connectors

ConnectorsConsole Port RS-232 (RJ-45)

System Power Input

Redundant power inputYes
Input Voltage DC36...72 V
Power Supply Reserve input Voltage DC36...72 V

Construction

Construction ChassisMetal Chassis
Mounting ConfigurationDIN-Rail mount
Protection Level of ChassisIP40

Dimensions and weight

Width80 mm
Depth110 mm
Height160 mm

Operating Conditions

Operating Temperature-40...85 °C

Standards and Certifications

EMIEN 55022, FCC Part 15
Power AutomationIEC 61850-3, IEEE 1613
