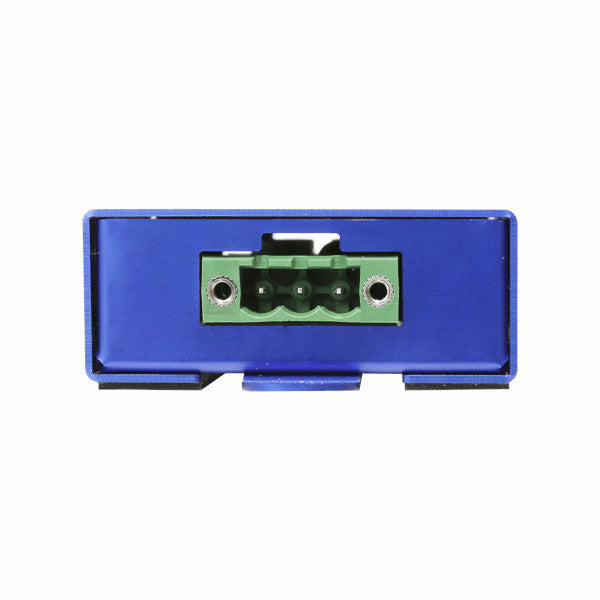

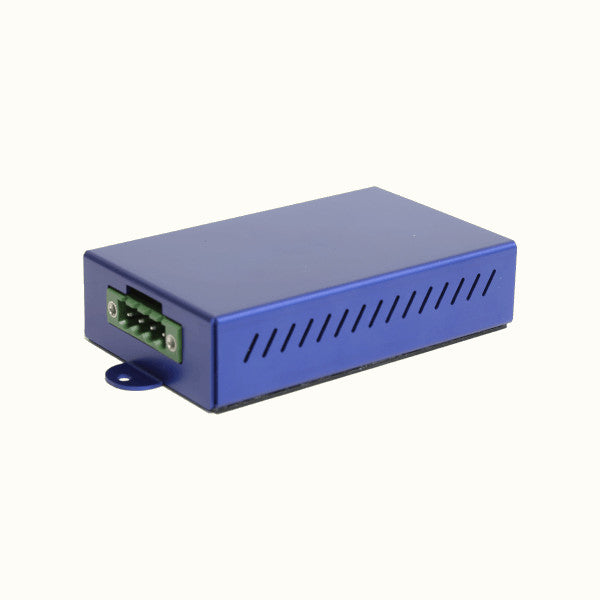

PVB-800

Ціна за запитом
Vehicle Power Delay Timer Box, 12-30VDC-in/out, Power on delay: 10/15/30/60 sec, Power off delay: 1/5/10/30 min, 3A Max load, MIL-STD-810G, -20..85C Operating Temp.

Specification

Power Supply

Type of Power SupplyIndustrial, External power adapter AC/DC
Type of input voltageDC
Output Voltage DC12 V
Rated current3 A
Input Voltage DC12...30 V

Construction

Mounting ConfigurationDesktop

Connectors

ConnectorsDC input (terminal block)

Dimensions and weight

Width55.4 mm
Height21.6 mm
Depth88.6 mm

Operating Conditions

Operating Temperature-20...85 °C
Humidity5-95%
VibrationMIL-STD-810G
ShockMIL-STD-810G
Temperature (Storage)-40~+85
