System Architecture | |

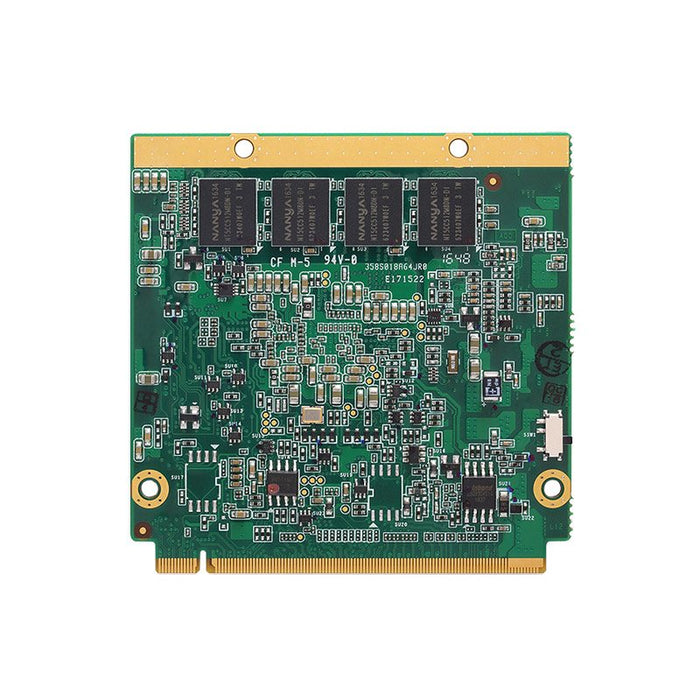

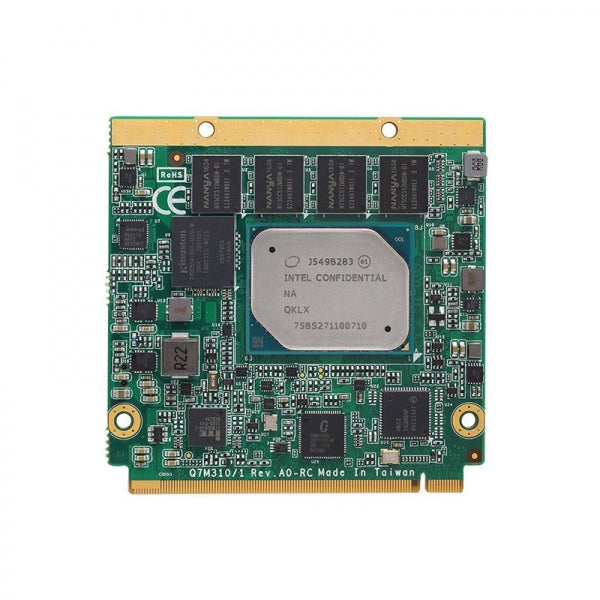

| Form Factor | Q7 CPU Module |
Construction | |
| Type | Fanless |
CPU | |
| СPU Generation/Family | Apollo Lake |
| Processor Installed | Intel Atom E3930 |
| Max CPU frequency | 1.8 GHz |
Chipset | |
| Chipset | Intel Apollo Lake SoC |
Memory | |
| Form-factor | DDR3L |
| Socket Type | Soldered |
| Default on Board Memory | 4 GB |
| Assembly | Fixed on Board |
Graphic | |
| Interfaces | LVDS, DDI |
Ethernet | |
| Controller Type | Intel i210-IT |
| Total Ethernet | 1 |
| 10/100/1000 Mbit/s | 1 |
Interfaces | |
| COM Total | 1 |
| RS-232 | 1 |
| USB Total | 6 |
| USB 2.0 | 4 |
| USB v3.x | 2 |
Extension Slots | |
| Total | 4 |
| PCI Express x1 | 4 |
Additional Functions | |
| Watchdog timer type | Hardware |
Dimensions and weight | |
| Width | 70 mm |
| Length | 70 mm |
Operating Conditions | |
| Operating Temperature | -40...85 °C |
