CPU | |
| CPU Support Type | Core i3 |
| Max CPU frequency | 3.9 GHz |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 2xSODIMM |
| Maximum Memory | 64 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Intel UHD Graphics |
| Interfaces | LVDS, 2xHDMI |
Ethernet | |
| Controller Type | Intel i211-AT 10/100/1000 Mbps, Intel i219-V 10/100/1000 Mbps |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 4 |
| RS-232/422/485 | 4 |
| USB Total | 8 |
| USB 2.0 | 4 |
| USB v3.x | 4 |
Audio | |
| Audio Controller | Realtek HD Audio Codec |
Drive interfaces | |
| RAID Levels | 1 |
Extension Slots | |
| Total | 4 |
| PCI Express x1 | 1 |
| M.2 | 2 |
| Mini-PCIe/Mini Card | 1 |
Connectors | |
| Internal Ports | COM, SATA 3, 4xUSB 2.0 |

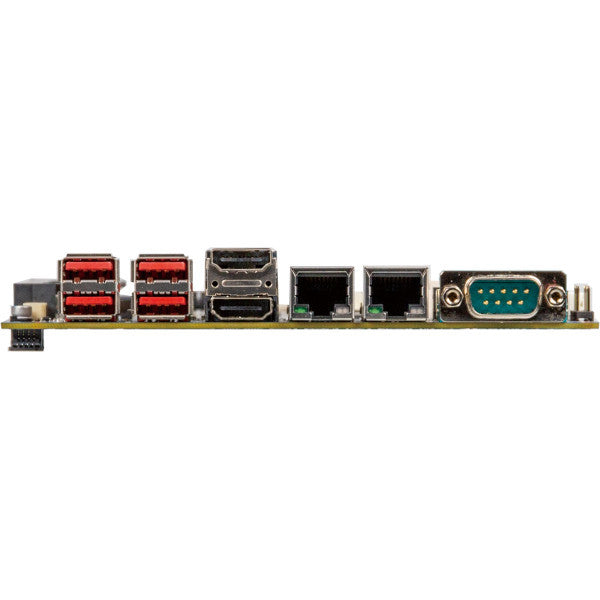

| Connectors | LVDS, 2xHDMI, 2xRJ45, 10xUSB |
Software | |
| Operating System Compatibility | Windows 10 |
Dimensions and weight | |
| Width | 146 mm |
| Length | 101.7 mm |
Operating Conditions | |
| Operating Temperature | 0...60 °C |
