System Architecture | |
| Form Factor | 3.5" Half-Size SBC |
CPU | |
| СPU Generation/Family | Elkhart Lake |
| Processor Installed | Ryzen V2718 |
| Socket | CPU onboard |
| Max CPU frequency | 4.15 GHz |
Chipset | |
| Chipset | SoC |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 2xSODIMM 260-pin |
| ECC | No |
| Maximum Memory | 64 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Integrated in CPU, AMD Radeon Graphics Vega |
| Interfaces | 4xHDMI |
Ethernet | |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 4 |
| RS-232/422/485 | 4 |
| USB Total | 6 |
| USB 2.0 | 4 |
| USB v3.x | 2 |
Digital Input-Output | |
| Channels of DIO | 8 |
Audio | |
| Audio Controller | Intel HD Audio |
Drive interfaces | |
| SATA 3 | 1 |
| M.2 | 1 |
Extension Slots | |
| Total | 3 |
| SIM Card slots | Yes, 1 |
| M.2 | 2 |
| M.2 Form Factor | 2280 M, 2230 E |
| Mini-PCIe/Mini Card | 1 |
Connectors | |

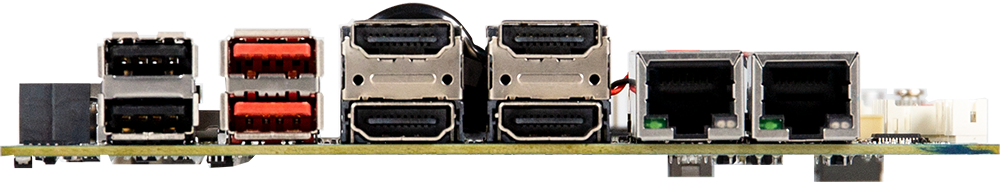

| Connectors | 4-pin ATX, 2xRJ45 Ethernet, 4xUSB, 4xHDMI |
Software | |
| Operating System Compatibility | Windows 10 |
Dimensions and weight | |
| Width | 146 mm |
| Length | 101.7 mm |
Operating Conditions | |
| Operating Temperature | 0...60 °C |
| Humidity | 0-95% |
