Construction | |
| Construction Chassis | Metal Chassis |
| Mounting Configuration | Built-in, Desktop |
| Type | Fanless |
CPU | |
| Processor Installed | NVIDIA Jetson Xavier NX (6-core ARM v8.2 64-bit CPU, 6MB L2 + 4MB L3) |
Memory | |
| Form-factor | DDR4 |
| Default on Board Memory | 8 GB |
| Assembly | Fixed on Board |
Graphic | |
| Graphic Controller | NVIDIA Volta GPU, 384-Core, 48 Tensor Cores |
Ethernet | |
| Total Ethernet | 10 |
| 10/100/1000 Mbit/s | 2 |
| PoE+ 10/100/1000 Mbit/s | 8 |
Interfaces | |
| COM Total | 4 |
| RS-232/422/485 | 4 |
| USB Total | 5 |
| USB 2.0 | 1 |
| USB v3.x | 4 |
Drive interfaces | |
| SATA 3 | 1 |
| MicroSD | 1 |
Storage Cage | |
| Number Of Cage External | 1 |
| 2.5" Cage Intenal | 1 |
Installed drive | |
| Drive Type | SSD |
| Storage Form-Factor | eMMC |
| 1st Storage Capacity | 16 GB |
Extension Slots | |
| Total | 3 |
| M.2 | 2 |
| M.2 Form Factor | 3052 B, 2230 E |
| Mini-PCIe/Mini Card | 1 |
| SIM Card slots | Yes, 1 |
Antenna characteristics | |
| Cellular interfaces | 4G (Optional) |
Connectors | |

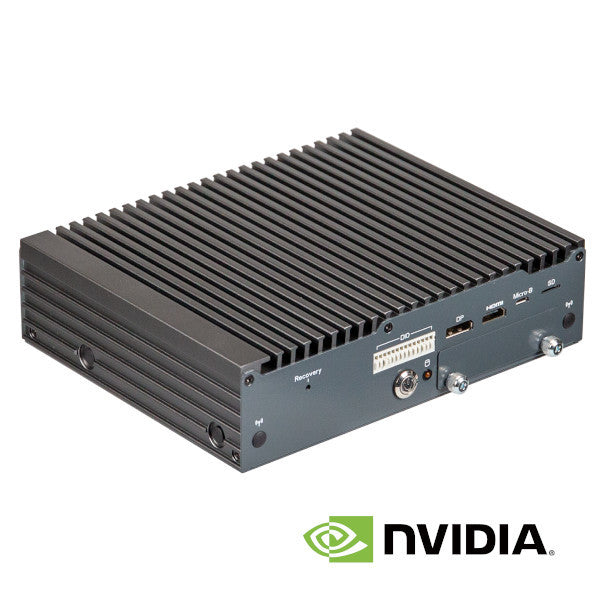

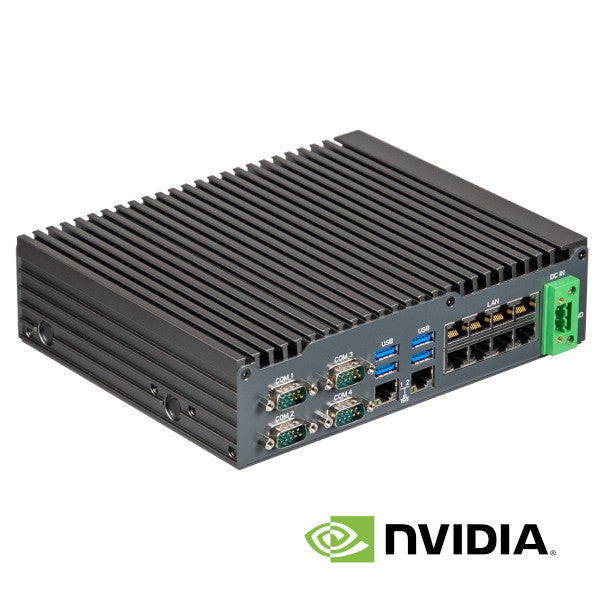

| Connectors | HDMI, 2xRJ45 Ethernet, 4xUSB, Display Port, DC input (terminal block), GPIO (terminal block), 1xMicro USB, SD card slot, 4xDB9 Male, 8xRJ45 Ethernet |
System Power Input | |
| Input Voltage DC | 54...54 V |
Power Supply | |
| Type of Power Supply | External power adapter AC/DC |
| Output Power | 180 W |
Dimensions and weight | |
| Width | 210 mm |
| Height | 55.2 mm |
| Depth | 169.8 mm |
Operating Conditions | |
| Operating Temperature | -20...70 °C |
| Humidity | 0-95% |
