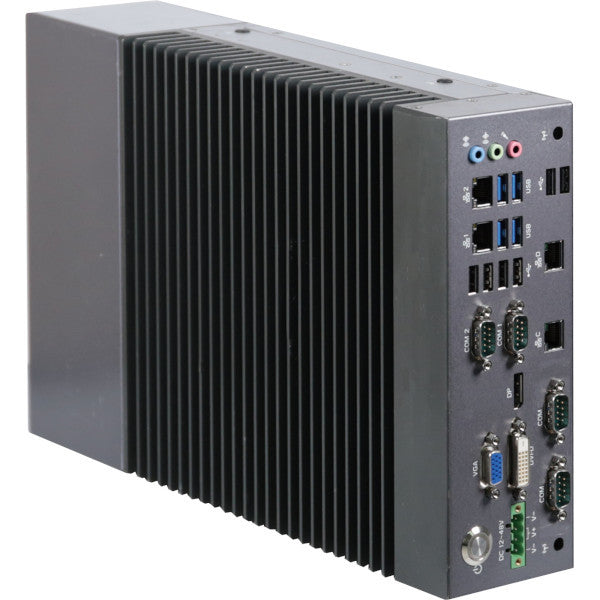

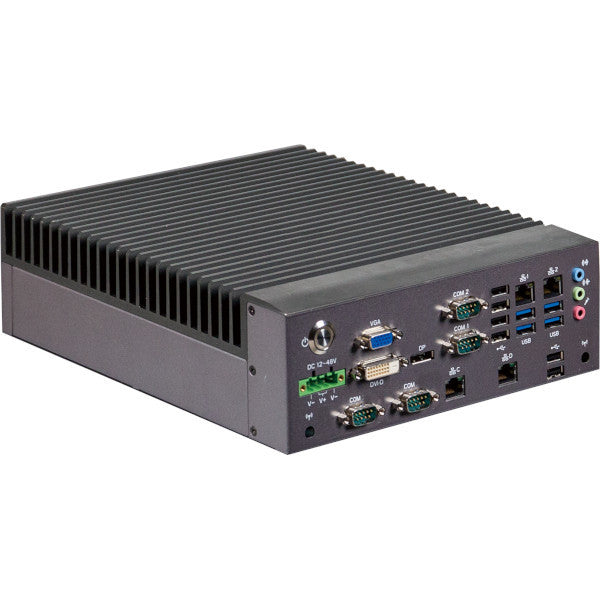

Construction | |
| Construction Chassis | Metal Chassis |
| Mounting Configuration | Built-in, Desktop |
| Type | Fanless |
CPU | |
| СPU Generation/Family | Comet Lake |
| Socket | LGA1200 |
Chipset | |
| Chipset | Intel Q470E |
Memory | |
| Socket Type | 2xDDR4 SODIMM 260pin |
| ECC | No |
| Maximum Memory | 64 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Integrated in CPU, Intel UHD Graphics 630 |
Ethernet | |
| Controller Type | Intel i211-AT 10/100/1000 Mbps, Intel i219-V 10/100/1000 Mbps |
| Total Ethernet | 4 |
| 10/100/1000 Mbit/s | 4 |
Wi-Fi | |
| Wi-Fi Standard | Yes |
Interfaces | |
| COM Total | 4 |
| RS-232 | 2 |
| RS-232/422/485 | 2 |
| USB Total | 10 |
| USB 2.0 | 6 |
Audio | |
| Audio Controller | Realtek HD Audio Codec |
Extension Slots | |
| M.2 | 2 |
| Mini-PCIe/Mini Card | 1 |
Connectors | |
| Connectors | 4xDB9, DVI-D, DB15 VGA, 4xRJ45 Ethernet, 10xUSB, Audio (in/out/Mic), Display Port, DC input (terminal block) |
Dimensions and weight | |
| Width | 224 mm |
| Height | 77.7 mm |
| Depth | 256.1 mm |
Operating Conditions | |
| Vibration | Operation: IEC 60068-2-64. 3 Grms. random. 5 ~ 500 Hz. 1 hr / Per Axis. With SSD/M.2 2280; Non-operation: IEC 60068-2-6. 2 G. Sine. 10 ~ 500 Hz. 1 Oct/min. 1 hr / Per Axis |
| Shock | Operation: IEC 60068-2-27. 50 G. half sine. 11 ms duration. With SSD |
Standards and Certifications | |
| Vibration And Shock | IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64 |
