Construction | |
| Construction Chassis | Metal Chassis |
| Mounting Configuration | Panel, Wall VESA 100 |

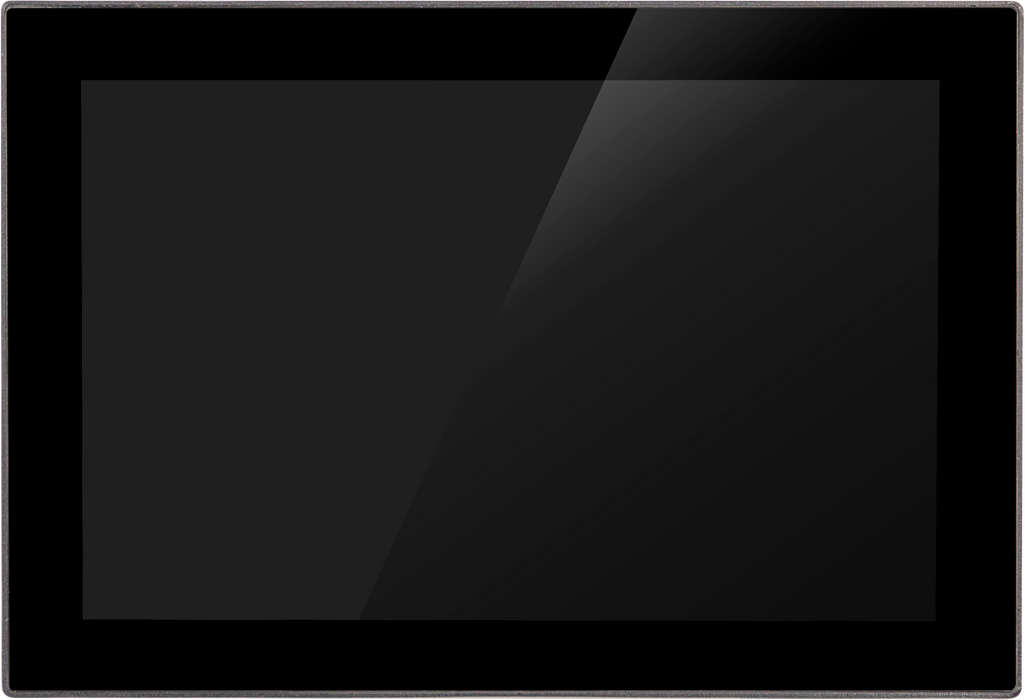

Display | |
| Display Type | LCD TFT |
| Diagonal | 10.1 " |
| Maximum resolution | 1280x800 Dots |
| Aspect Ratio | 16:10 |
| Brightness | 300 Cd/m2 |
| Contrast Ratio | 1300~1 |
| Input Interface | D-Sub |
Touch Screen | |
| Touch Screen Type | Capacitive |
CPU | |
| СPU Generation/Family | Apollo Lake |
| Processor Installed | Intel Atom x5-E3940 |
| CPU Support Type | Atom |
| Max CPU frequency | 1.8 GHz |
Chipset | |
| Chipset | Intel Atom SoC |
Memory | |
| Form-factor | DDR3 |
| Socket Type | 2xSODIMM 204pin |
| ECC | No |
| Maximum Memory | 8 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Intel HD Graphics 500 |
Ethernet | |
| Controller Type | Intel i211-AT 10/100/1000 Mbps |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 1 |
| RS-232/422/485 | 1 |
| USB Total | 4 |
| USB 2.0 | 2 |
| USB v3.x | 2 |
Drive interfaces | |
| M.2 | 1 |
Extension Slots | |
| M.2 | 1 |
| M.2 Form Factor | 2242 M |
| Mini-PCIe/Mini Card | 1 |
| SIM Card slots | Yes, 1 |
Antenna characteristics | |
| Cellular interfaces | 3G (Optional) |
Connectors | |

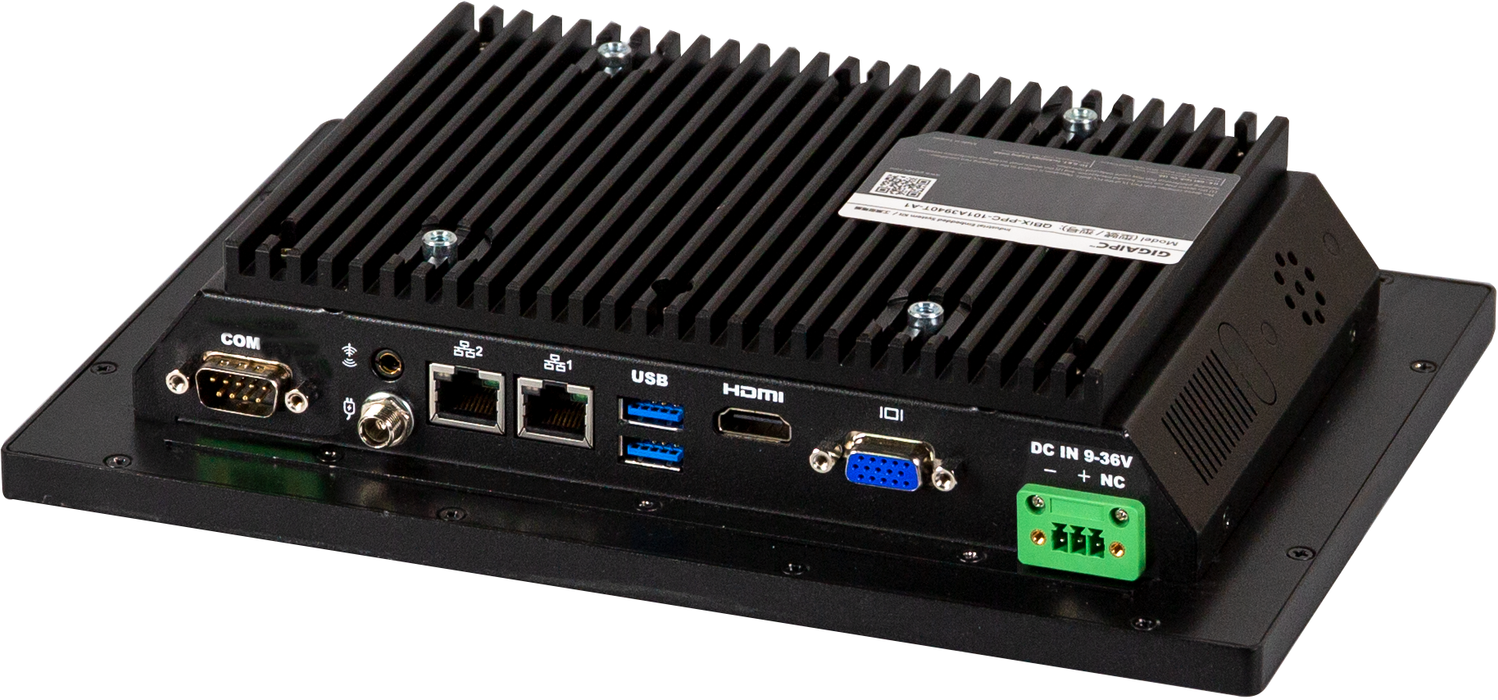

| Connectors | DB9, DB15 VGA, HDMI, 2xRJ45 Ethernet, 4xUSB, DC input (terminal block), Jack 3.5 |
System Power Input | |
| Input Voltage DC | 12...36 V |
Power Supply | |
| Supported Types of Power Supply | External power adapter AC/DC |
Dimensions and weight | |
| Width | 285.3 mm |
| Height | 176.3 mm |
| Depth | 51.3 mm |
Operating Conditions | |
| Operating Temperature | 0...60 °C |
| Humidity | 10-90% |
| Vibration | Operation: IEC 60068-2-64. 1 Grms. random. 5 ~ 500 Hz. 1 hr / Per Axis. With SSD/M.2 2242 Non-operation: IEC 60068-2-6. 2 G. Sine. 10 ~ 500 Hz. 1 Oct/min. 1 hr / Per Axis |
| Shock | Operation: IEC 60068-2-27. 50 G. half sine. 11 ms duration. With SSD |
Standards and Certifications | |
| Certifications | CE/FCC |
| Vibration And Shock | IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64 |
