Construction | |
| Construction Chassis | Metal Chassis |
| Mounting Configuration | Panel, Wall VESA 100 |
| Type | Fanless |
Display | |

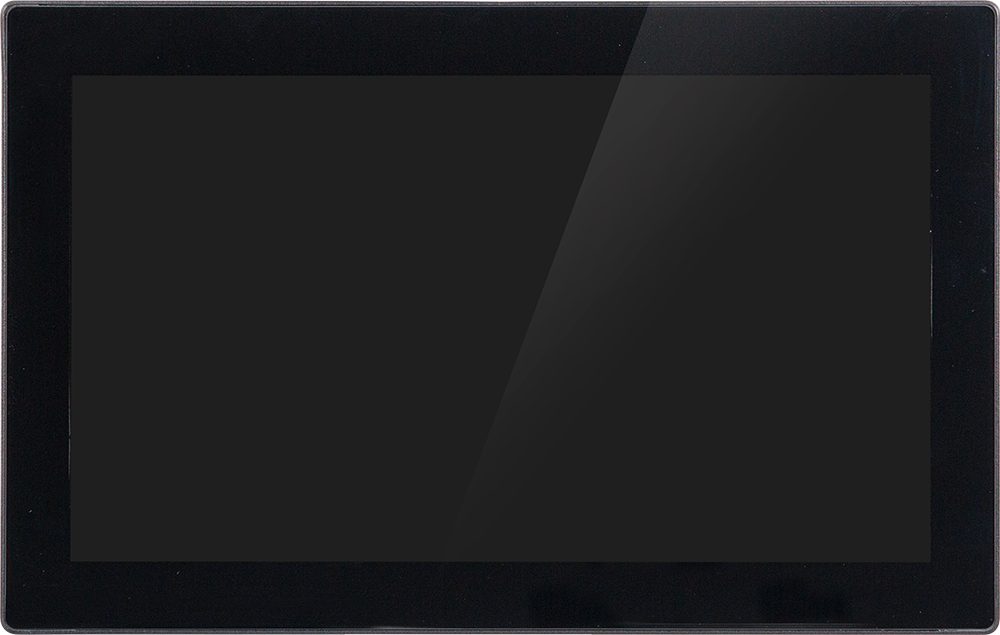

| Display Type | LCD TFT |
| Diagonal | 15.6 " |
| Maximum resolution | 1980x1080 Dots |
| Aspect Ratio | 16:9 |
| Brightness | 450 Cd/m2 |
| Contrast Ratio | 800~1 |
| Input Interface | HDMI |
Touch Screen | |
| Touch Screen Type | Capacitive |
CPU | |
| СPU Generation/Family | Coffee Lake |
| Processor Installed | Intel Core i3-8145UE |
| Socket | FCBGA 1528 |
| CPU Support Type | Core i3 |
| Max CPU frequency | 3.9 GHz |
Chipset | |
| Chipset | Intel Coffe Lake SoC |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 2xSODIMM 260-pin |
| ECC | No |
| Maximum Memory | 64 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Intel UHD Graphics 620 |
Ethernet | |
| Controller Type | Intel i211-AT 10/100/1000 Mbps, Intel i219-V 10/100/1000 Mbps |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 2 |
| RS-232/422/485 | 2 |
| USB Total | 4 |
| USB v3.x | 4 |
Drive interfaces | |
| SATA 3 | 2 |
| M.2 | 1 |
Storage Cage | |
| Number Of Cage External | 2 |
| 2.5" Cage Intenal | 2 |
Extension Slots | |
| Total | 3 |
| M.2 | 2 |
| M.2 Form Factor | 2280 M, 2230 E |
| Mini-PCIe/Mini Card | 1 |
| SIM Card slots | Yes, 1 |
Antenna characteristics | |
| Cellular interfaces | 4G (Optional) |
LED / Controls | |
| LED | Power LED |
| Controls | On/Off |
Connectors | |

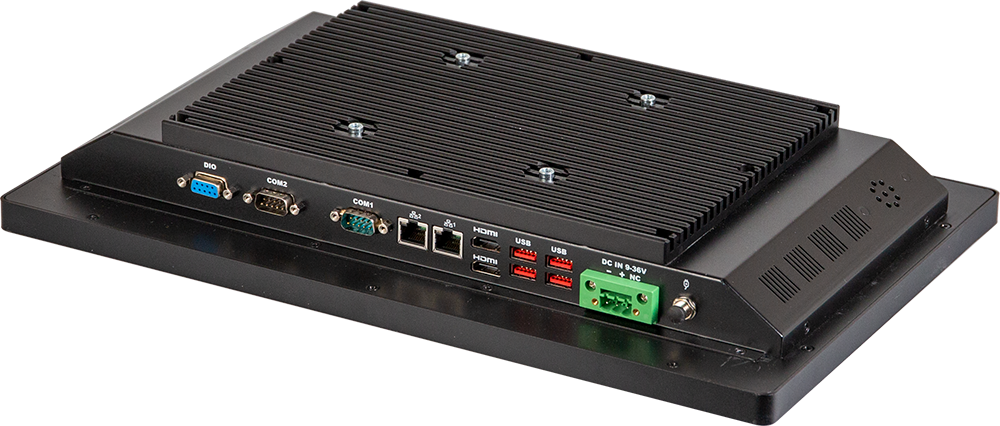

| Connectors | 2xDB9, 2xHDMI, 2xRJ45 Ethernet, 4xUSB, DC input (terminal block), DB9 GPIO |
System Power Input | |
| Input Voltage DC | 9...36 V |
Power Supply | |
| Supported Types of Power Supply | External power adapter AC/DC |
Dimensions and weight | |
| Width | 399.6 mm |
| Height | 252.6 mm |
| Depth | 56.8 mm |
Operating Conditions | |
| Operating Temperature | 0...50 °C |
| Humidity | 0-95% |
| Vibration | Operation: IEC 60068-2-64. 1 Grms. random. 5 ~ 500 Hz. 1 hr / Per Axis. With SSD/M.2 2280 Non-operation: IEC 60068-2-6. 2 G. Sine. 10 ~ 500 Hz. 1 Oct/min. 1 hr / Per Axis |
| Shock | Operation: IEC 60068-2-27. 50 G. half sine. 11 ms duration. With SSD |
Standards and Certifications | |
| Certifications | CE/FCC |
| Vibration And Shock | IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64 |
