Construction | |
| Construction Chassis | Metal Chassis with Aluminium Heatsink |
| Mounting Configuration | Desktop, Wall |
| Type | Fanless |
CPU | |
| СPU Generation/Family | Alder Lake |
| Processor Installed | Intel Core i7-1255U |
| Socket | CPU onboard |
Chipset | |
| Chipset | Intel SoC |
Memory | |
| Socket Type | 2xSODIMM 260-pin |
| ECC | No |
| Maximum Memory | 64 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Intel Iris Xe Graphics |
Ethernet | |
| Controller Type | Intel i226V |
| Total Ethernet | 2 |
| 2,5 Gbit/s | 2 |
Interfaces | |
| COM Total | 3 |
| RS-232/422/485 | 3 |
| USB Total | 6 |
| USB 2.0 | 2 |
Audio | |
| Audio Controller | Realtek ALC269 |
Storage Cage | |
| 2.5" Cage Intenal | 1 |
Extension Slots | |
| Total | 3 |
| M.2 | 2 |
| Mini-PCIe/Mini Card | 1 |
Connectors | |

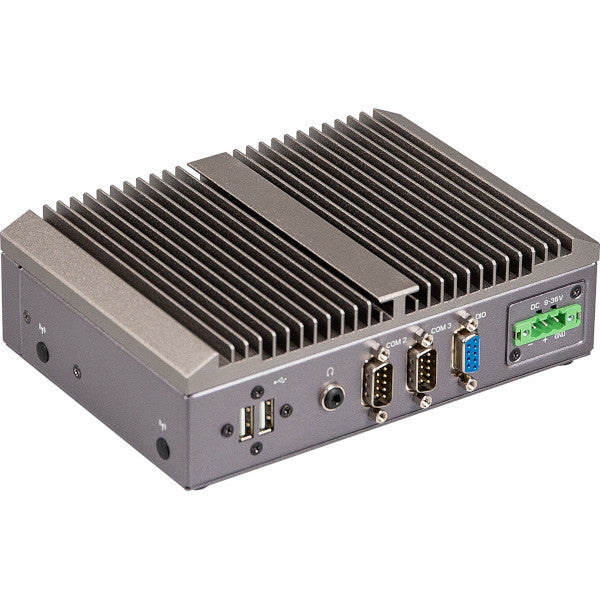

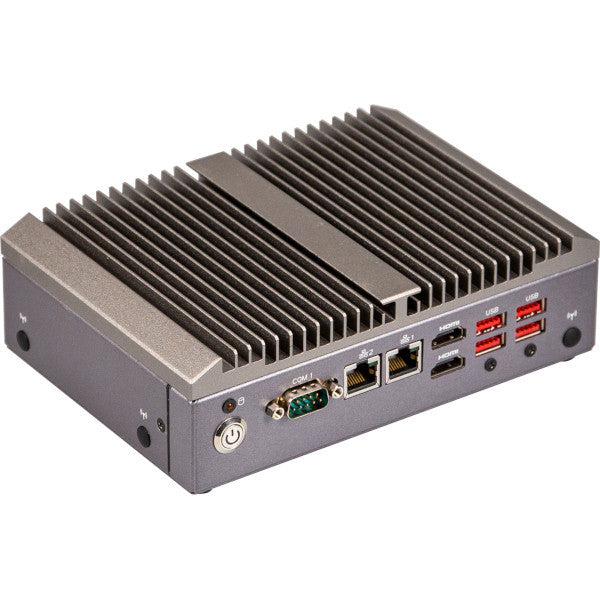

| Connectors | 3xDB9, 2xHDMI, 2xRJ45 Ethernet, 6xUSB, Mic In, Line Out, DC input (terminal block), GPIO (terminal block) |
Dimensions and weight | |
| Width | 178 mm |
| Height | 125 mm |
| Depth | 52.7 mm |
Operating Conditions | |
| Vibration | Operation: IEC 60068-2-64. 5 Grms. random. 5 ~ 500 Hz. 1 hr / Per Axis. With SSD/M.2 2280; Non-operation: IEC 60068-2-6. 2 G. Sine. 10 ~ 500 Hz. 1 Oct/min. 1 hr / Per Axis |
| Shock | Operation: IEC 60068-2-27. 50 G. half sine. 11 ms duration. With SSD |
Standards and Certifications | |
| Certifications | CE/FCC |
| Vibration And Shock | IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64 |
