System Architecture | |

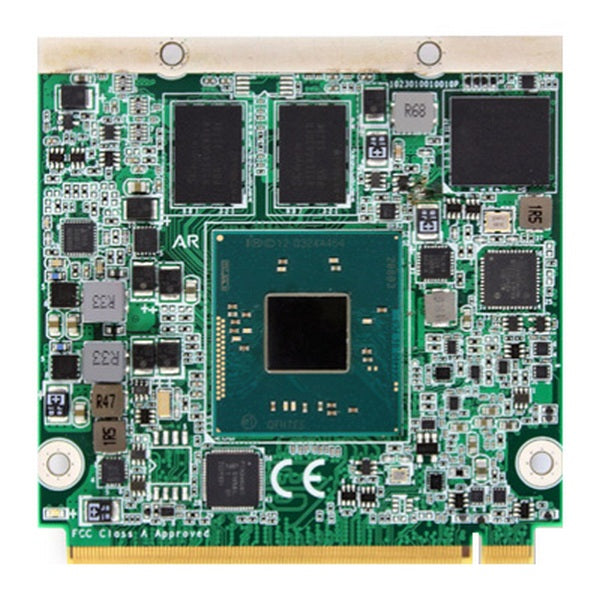

| Form Factor | Q7 CPU Module |
Construction | |
| Type | Fanless |
CPU | |
| СPU Generation/Family | Bay Trail |
| Processor Installed | Intel Atom E3825 |
| Socket | FCBGA1170 |
| Max CPU frequency | 1.33 GHz |
Chipset | |
| Chipset | Intel Bay Trail-I SoC |
Memory | |
| Form-factor | DDR3L |
| Socket Type | Soldered |
| ECC | No |
| Default on Board Memory | 2 GB |
| Assembly | Fixed on Board |
Graphic | |
| Graphic Controller | Intel Gen7 graphic engine |
| Interfaces | VGA, DDI, LVDS |
Ethernet | |
| Controller Type | Intel i210-IT |
| Total Ethernet | 1 |
| 10/100/1000 Mbit/s | 1 |
Interfaces | |
| USB Total | 8 |
| USB 2.0 | 8 |
Audio | |
| Audio Controller | Intel HD Audio |
Drive interfaces | |
| SATA 2 | 2 |
Extension Slots | |
| PCI Express x1 | 3 |
Additional Functions | |
| Watchdog timer type | Software |
Software | |
| Operating System Compatibility | Windows 7, Windows 8, Windows 8.1, Ubuntu |
Dimensions and weight | |
| Width | 70 mm |
| Length | 70 mm |
Operating Conditions | |
| Operating Temperature | -40...85 °C |
| Humidity | 10-95% |
