R10L100-IPA1WT

Name: R10L100-IPA1WT
Brand: Winmate
SKU: 56539000
Availability: InStock

Winmate

Ціна за запитом

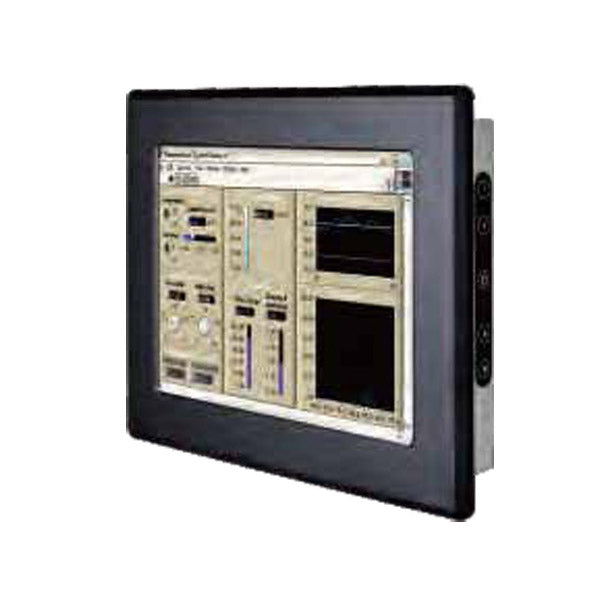

10.4" TFT LCD Industrial Display, Touchscreen (optional), VGA, HDMI, Wide Temperature -20...+60C

Специфікація

Specification

Construction
Protection Level of Front Side (Panel)	IP65
Display
Diagonal	10.4 "
Maximum resolution	1024x768 Dots
Brightness	550 Cd/m2
Contrast Ratio	700~1
Touch Screen
Touch Screen Type	Resistive
Interface	RS-232, USB
Connectors
Connectors	DB15 VGA, HDMI
System Power Input
Input Voltage DC	12...12 V
Input Voltage AC	100...240 V
Operating Conditions
Operating Temperature	-20...60 °C
Standards and Certifications
Certifications	CE, FCC
