R21L100-MLM1FP

Name: R21L100-MLM1FP
Brand: Winmate
SKU: 09303200
Availability: InStock

Winmate

Ціна за запитом

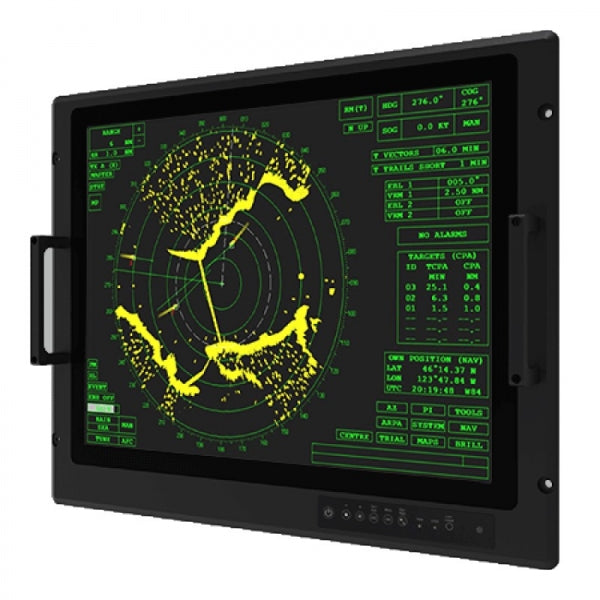

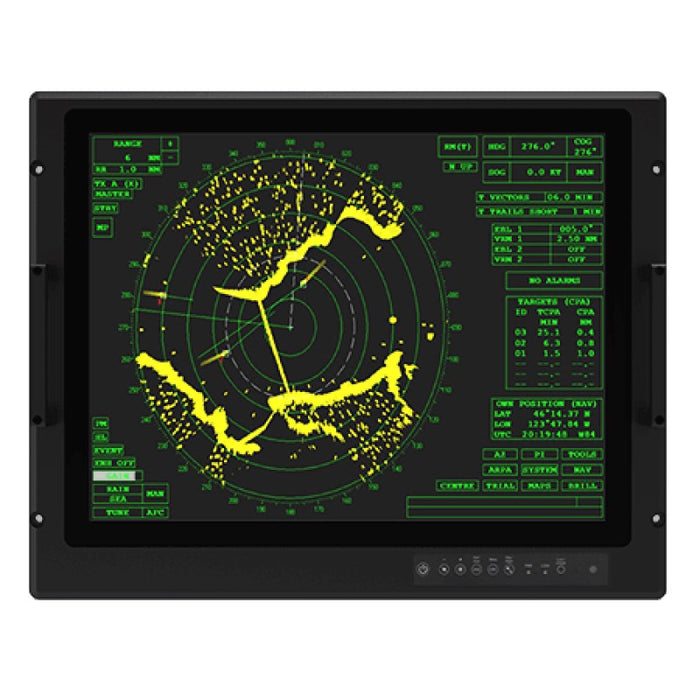

21.3" TFT LCD Industrial Display, 1600x1200, P-Cap Touch Screen, VGA+DVI+BNC Input, 12VDC-in, 100-240VAC Apapter

Специфікація

Specification

Construction
Construction Chassis	Metal Chassis with Aluminium Heatsink
Mounting Configuration	19" Rackmount, Wall VESA 100, VESA 200x100
Protection Level of Front Side (Panel)	IP65
Display
Display Type	LCD TFT
Diagonal	21.3 "
Maximum resolution	1600x1200 Dots
Brightness	1000 Cd/m2
Contrast Ratio	1800~1
Touch Screen
Touch Screen Type	Capacitive
Interface	USB
LED / Controls
Controls	KeyPad
Connectors
Connectors	DVI-D, DB15 VGA, DC Input, 5xBNCs (R,G,B,H,V), USB type B
System Power Input
Input Voltage DC	9...36 V
Input Voltage AC	100...240 V
Operating Conditions
Operating Temperature	0...50 °C
Dimensions and weight
Width	580 mm
Height	384 mm
Depth	71 mm
Standards and Certifications
Certifications	CE, FCC
