System Architecture | |
| Form Factor | Full Size PICMG 1.3 |
CPU | |
| СPU Generation/Family | Coffee Lake, Coffee Lake Refresh |
| CPU Support Type | Celeron, Core i3, Core i5, Core i7, Pentium |
| Socket | LGA1151 |
Chipset | |
| Chipset | Intel Q370 |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 4xSODIMM |
| Maximum Memory | 128 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Integrated in CPU |
Ethernet | |
| Controller Type | Intel WGI210AT 10/100/1000 Mbps, Intel WGI219LM 10/100/1000 Mbps |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 4 |
| RS-232 | 2 |
| RS-232/422/485 | 2 |
| USB Total | 16 |
| USB 2.0 | 4 |
| USB v3.x | 12 |
Drive interfaces | |
| RAID Levels | 1, 5, 10 |
| M.2 | 1 |
Additional Functions | |
| Watchdog timer type | Software |
Connectors | |
| Internal Ports | COM, SATA 3, USB 3.0, 8-pin ATX |

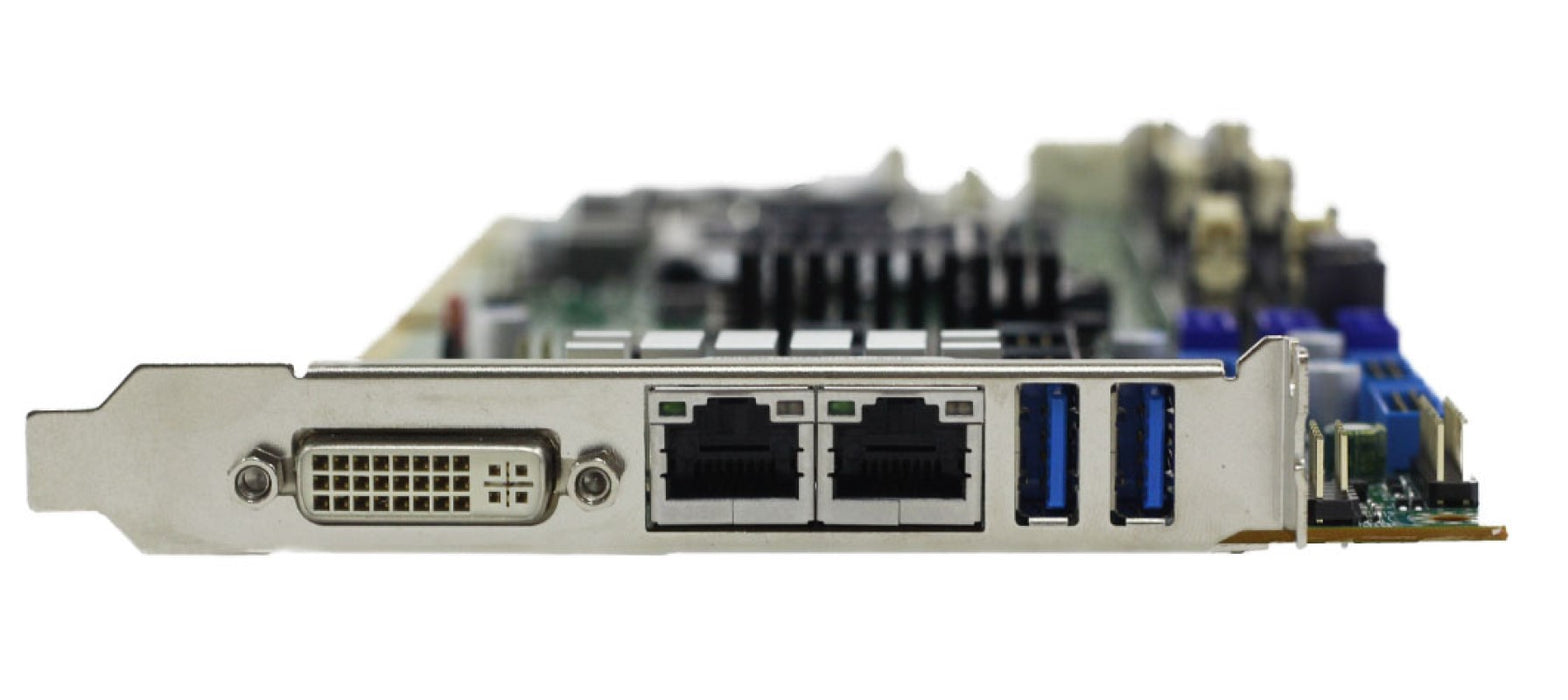

| Connectors | DVI, RJ45 Ethernet, 2xUSB |
Software | |
| Operating System Compatibility | Windows IoT Enterprise 10, Windows 10 |
Dimensions and weight | |
| Width | 126.39 mm |
| Length | 338.5 mm |
Operating Conditions | |
| Operating Temperature | 0...60 °C |
Standards and Certifications | |
| Certifications | CE, FCC |
