System Architecture | |
| Form Factor | Full Size PICMG 1.3 |
CPU | |
| СPU Generation/Family | Alder Lake |
| CPU Support Type | Celeron, Core i3, Core i5, Core i7, Pentium, Core i9 |
| Socket | LGA1700 |
Chipset | |
| Chipset | Intel R680E |
Memory | |
| Form-factor | DDR5 |
| Socket Type | 2xSODIMM |
| ECC | Yes |
| Maximum Memory | 64 GB |
Graphic | |
| Interfaces | DisplayPort, DVI-D, HDMI |
Ethernet | |
| Controller Type | Intel WGI225LM, Intel WGI225VT |
| Total Ethernet | 2 |
| 2,5 Gbit/s | 2 |
Interfaces | |
| COM Total | 4 |
| RS-232 | 2 |
| RS-232/422/485 | 2 |
| USB Total | 9 |
| USB 2.0 | 4 |
| USB v3.x | 5 |
Audio | |
| Audio Controller | Realtek ALC888 |
Drive interfaces | |
| RAID Levels | 1, 5, 10 |
| M.2 | 1 |
Connectors | |
| Internal Ports | 4xSATA 3, 2x14-pin RS-232/422/485, 2x10-pin RS-232, 4x4-pin USB 2.0, GPIO, 19-pin USB 3.0, 8-pin ATX, 10-pin KB/MS |

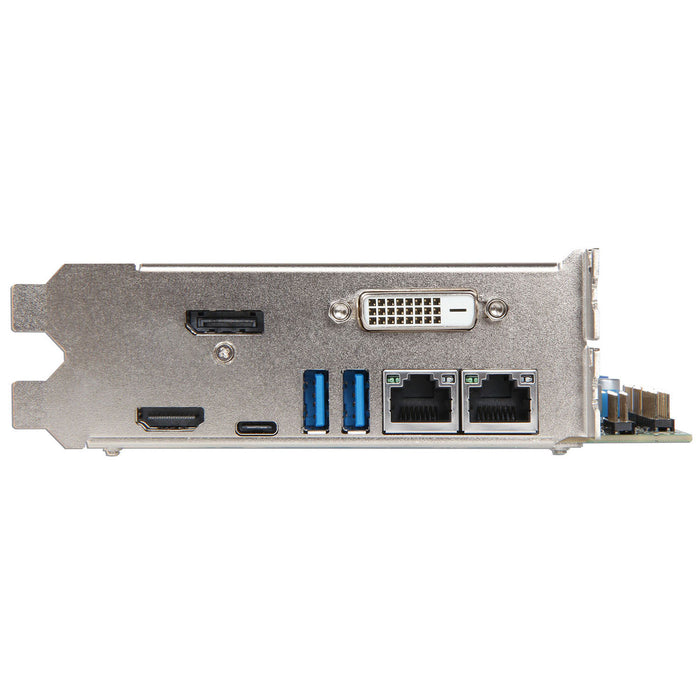

| Connectors | DVI-D, HDMI, 2xRJ45 Ethernet, 2xUSB, Display Port, USB type C |
Software | |
| Operating System Compatibility | Windows 10, Windows 11 |
Dimensions and weight | |
| Width | 126.39 mm |
| Length | 338.5 mm |
Operating Conditions | |
| Operating Temperature | 0...60 °C |
Standards and Certifications | |
| Certifications | CE, FCC Class A |
