Construction | |
| Mounting Configuration | Wall |
| Type | Fan |
CPU | |
| СPU Generation/Family | Coffee Lake Refresh |
| Processor Installed | Intel Core i7-9850HE |
| Max CPU frequency | 4.4 GHz |
Chipset | |
| Chipset | Intel CM246 |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 2xSODIMM |
| Default on Board Memory | 32 GB |
| Maximum Memory | 32 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Integrated in CPU |
Ethernet | |
| Controller Type | Intel i211-AT 10/100/1000 Mbps, Intel i219-LM |
| Total Ethernet | 4 |
| 10/100/1000 Mbit/s | 4 |
Interfaces | |
| COM Total | 2 |
| RS-232/422/485 | 2 |
| USB 2.0 | 4 |
| USB v3.x | 6 |
Digital Input-Output | |
| Channels of DIO | 2 |
Drive interfaces | |
| mSATA | 1 |
Installed drive | |
| Drive Type | SSD |
| Storage Form-Factor | mSATA |
| 1st Storage Capacity | 256 GB |
Extension Slots | |
| PCI Express x4 | 1 |
| M.2 | 1 |
| Mini-PCIe/Mini Card | 2 |
Additional Functions | |
| Watchdog timer type | Software |
Connectors | |

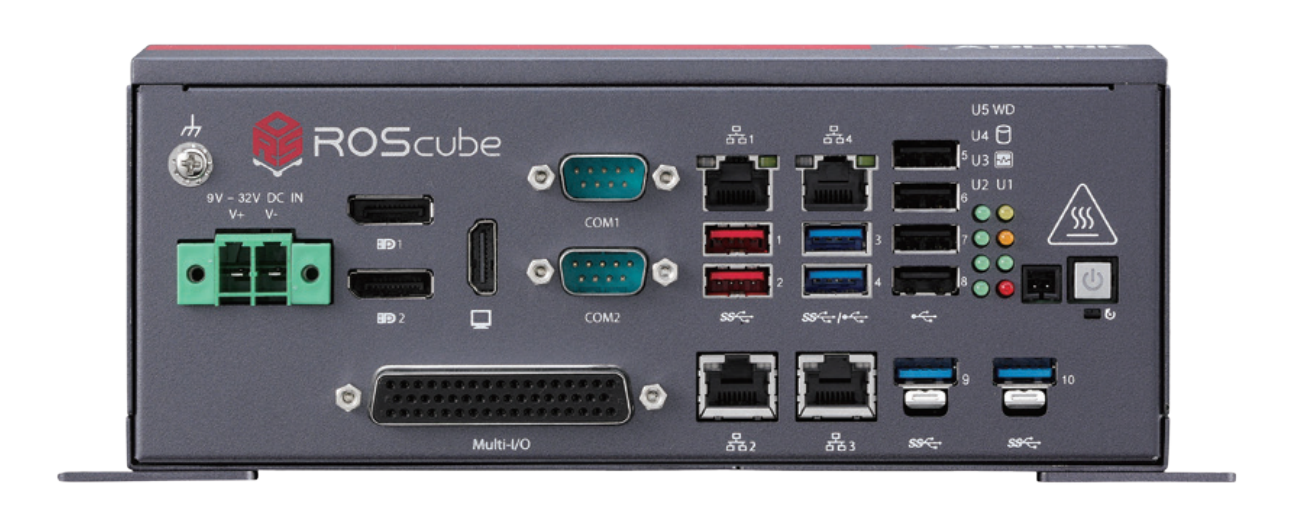

| Connectors | 2xDB9, HDMI, 4xRJ45 Ethernet, 10xUSB, DB26 Multi-I/O Connector, Terminal block |
System Power Input | |
| Input Voltage DC | 9...32 V |
| Power Consumption | 151 W |
Dimensions and weight | |
| Width | 240 mm |
| Height | 86 mm |
| Depth | 210 mm |
Operating Conditions | |
| Operating Temperature | -20...60 °C |
| Vibration | 1G. 5-500Hz ( 5. 5-500 Hz with M.2 SSD) |
| Shock | 100G. 11ms |
Standards and Certifications | |
| EMI | EN 61000-6-4 |
| EMS | IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11 |
| Safety | UL, cUL |
