CPU | |
| Processor Installed | Intel Core i7-1185G7E |
| Max CPU frequency | 4.4 GHz |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 2xDIMM |
| Default on Board Memory | 16 GB |
Graphic | |
| Graphic Controller | Integrated in CPU |
Ethernet | |
| Controller Type | Intel i219-LM, Intel i225LM |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| RS-232 | 2 |
| USB v3.x | 2 |
Extension Slots | |
| M.2 | 2 |
Connectors | |

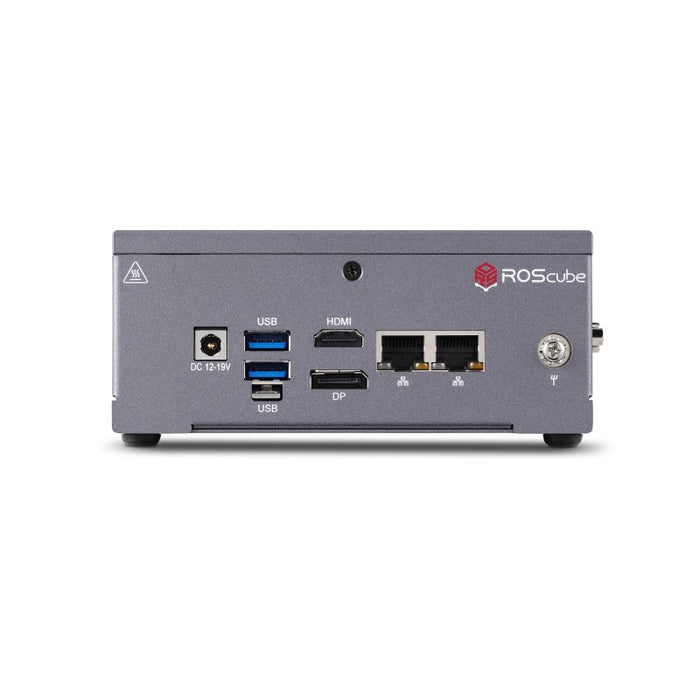

| Connectors | 2xDB9, HDMI, 2xRJ45 Ethernet, 2xUSB, DC Input, Display Port, USB type C |
System Power Input | |
| Input Voltage DC | 12...19 V |
| Power Consumption | 90 W |
Software | |
| Operating System Compatibility | Ubuntu |
Dimensions and weight | |
| Width | 140 mm |
| Height | 63 mm |
| Depth | 110 mm |
Operating Conditions | |
| Operating Temperature | 0...60 °C |
| Vibration | 3Grms. 5-500 Hz |
| Shock | 50G. 11ms |
Standards and Certifications | |
| Certifications | CE, FCC Class B |
| EMS | IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11 |
| Vibration And Shock | IEC 60068-2-6, IEC 60068-2-64 |
