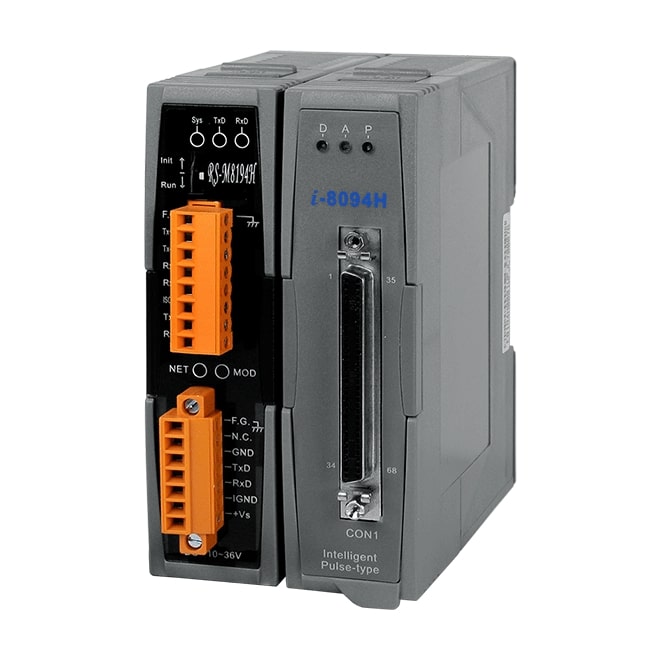

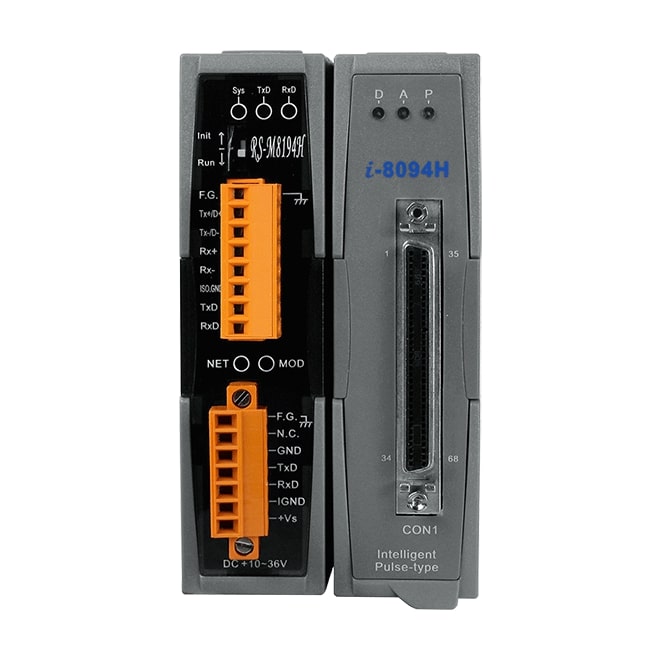

RS-M8194H

Name: RS-M8194H
Brand: ICP DAS
SKU: 08134600
Availability: InStock

ICP DAS

Ціна за запитом

Serial Communication Remote Unit with High-speed 4-axis Motion Control Module, Modbus RTU

Специфікація

Specification

Construction
Construction Chassis	Plastic Chassis
Mounting Configuration	DIN-Rail mount
Digital Input
Total channels of digital input	12
Isolation of Digital Input	2500 V
Digital Output
Total channels of digital output	3
Channels	4
Output frequency range	0~4 MHz
Signal Type	CW/CCW, Pulse/Dir
Interfaces
COM Total	1
RS-232	1
Supported Protocols
Industrial Protocols	Modbus RTU slave
Connectors
Connectors	68-pin SCSI-II
Dimensions and weight
Width	65 mm
Depth	121 mm
Height	99 mm
System Power Input
Input Voltage DC	10...30 V
Operating Conditions
Operating Temperature	20...75 °C

Документація
