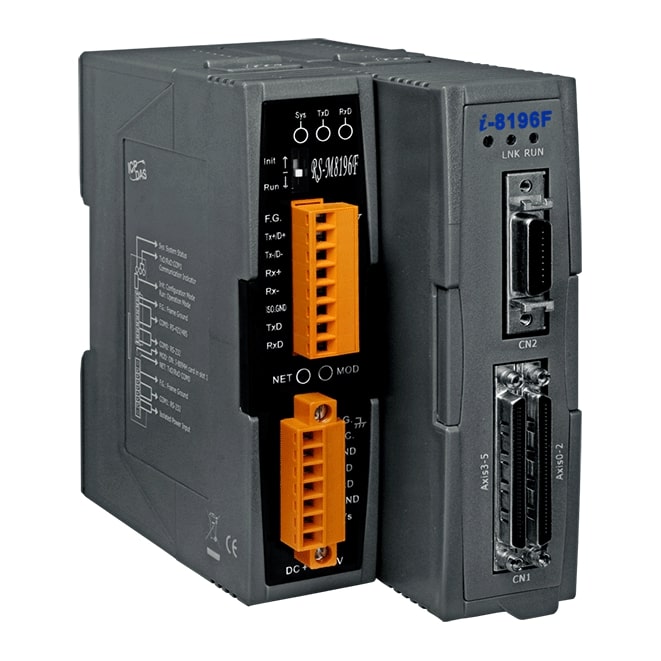

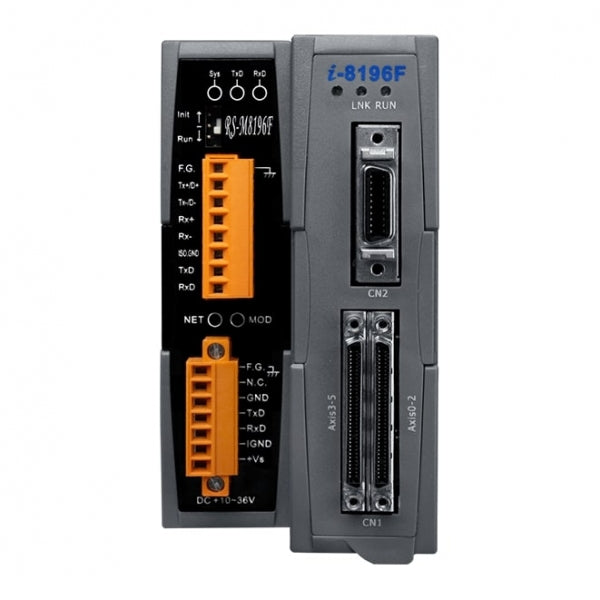

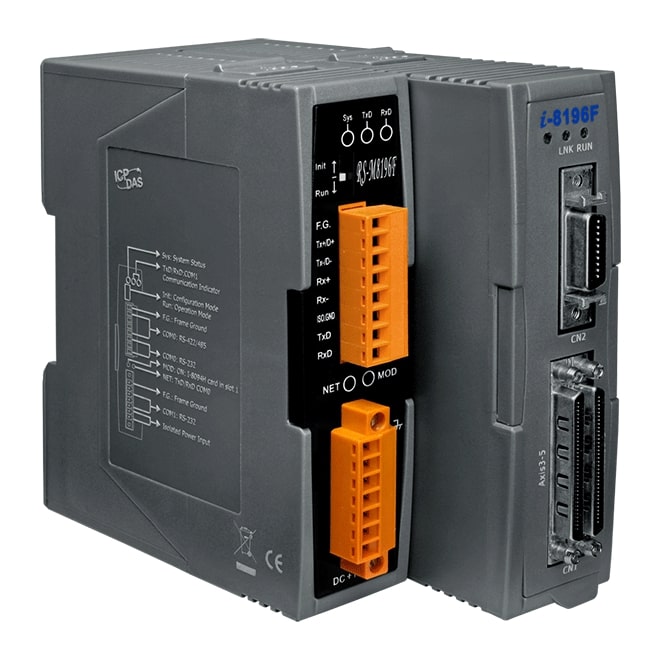

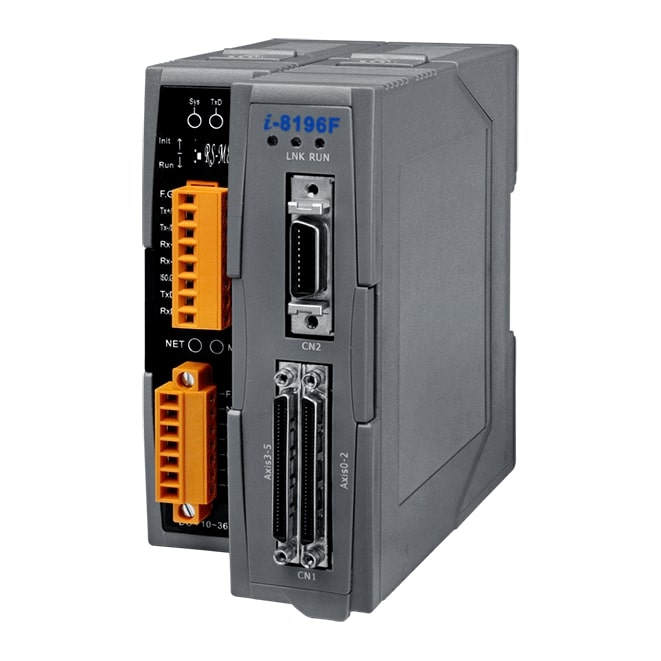

RS-M8196F

Name: RS-M8196F
Brand: ICP DAS
SKU: 08134700
Availability: InStock

ICP DAS

Ціна за запитом

Serial Communication Remote Unit with High-speed 6-axis Motion Control Module, Modbus RTU

Специфікація

Specification

Construction
Construction Chassis	Plastic Chassis
Mounting Configuration	DIN-Rail mount
Digital Input
Total channels of digital input	12
Isolation of Digital Input	2500 V
Digital Output
Total channels of digital output	3
Channels	6
Signal Type	A/B, CW/CCW, Pulse/Dir
Output frequency range	0~12 MHz
Interfaces
COM Total	1
RS-232	1
Supported Protocols
Industrial Protocols	Modbus RTU slave
Connectors
Connectors	68-pin SCSI-II
System Power Input
Input Voltage DC	10...30 V
Dimensions and weight
Width	65 mm
Depth	121 mm
Height	125 mm
Operating Conditions
Operating Temperature	0...60 °C
