Construction | |
| Construction Chassis | Magnesium Alloy |
| Protection Level of Front Side (Panel) | IP53 |
| Protection Level of Chassis | IP53 |
| Type | Fan |
Display | |
| Display Type | LCD IPS |
| Diagonal | 14 " |
| Maximum resolution | 1920x1080 Dots |
| Brightness | 250 Cd/m2 |
Touch Screen | |
| Touch Screen Type | Capacitive |
CPU | |
| СPU Generation/Family | Tiger Lake |
| Processor Installed | Intel Core i5-1135G7 |
| CPU Support Type | Core i5 |
| Max CPU frequency | 4.2 GHz |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 2xSODIMM |
| Default on Board Memory | 8 GB |
| Maximum Memory | 64 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Integrated in CPU, Intel Iris Xe Graphics |
Ethernet | |
| Total Ethernet | 1 |
| 10/100/1000 Mbit/s | 1 |
Wi-Fi | |
| Wi-Fi Standard | 802.11a/b/g/n/ac |
Interfaces | |
| COM Total | 1 |
| RS-232 | 1 |
| USB Total | 4 |
| USB 2.0 | 1 |
| USB v3.x | 3 |
Drive interfaces | |
| M.2 | 1 |
| SD Slots | 1 |
Installed drive | |
| Drive Type | SSD |
| Storage Form-Factor | 2.5" |
| Drive Interface | SATA |
| 1st Storage Capacity | 256 GB |
Additional Functions | |
| Camera Frontside | 2 MP |
| GPS | GPS |
| Smart Card Reader | Yes |
| Fingerprint Scanner | Optional |
Antenna characteristics | |
| Cellular interfaces | 4G |
| Bluetooth | Yes |
Keyboard / Pointing Devices | |
| Type Keyboard | Waterproof |
| Layout | German |
| Type Mouse | TouchPad |
LED / Controls | |
| LED | 1xHDD LED, Battеry Status, Caps, Num, WLAN LED |
| Controls | On/Off, Control Buttons |
Connectors | |

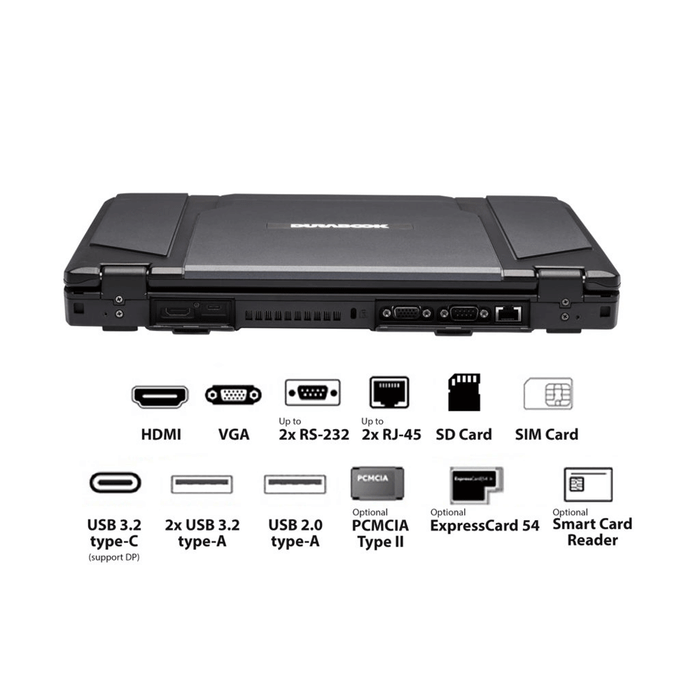

| Connectors | DB9, DB15 VGA, HDMI, RJ45 Ethernet, 4xUSB, Mic In, Line Out, DC Input, SIM Card Slot, Smart card slot |
| Docking Station | Yes |
System Power Input | |
| Input Voltage DC | 19...19 V |
Power Supply | |
| Type of Power Supply | External power adapter AC/DC |
| Output Power | 90 W |
| Input Voltage AC | 100...240 V |
Battery | |
| Battery 1 Technology | Li-ion |
| Battery Capacity | 4700 mA*h |
| RunTime Battery 1 | 0 h |
Software | |
| Operating System Compatibility | Windows 10 |
| Operating System Installed | Windows 10 |
Dimensions and weight | |
| Width | 350 mm |
| Height | 38 mm |
| Depth | 282 mm |
Operating Conditions | |
| Operating Temperature | -20...60 °C |
Standards and Certifications | |
| MIL-STD-810 | MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock |
| Vibration And Shock | ASTM 4169-08 |
