S17L500-STM1/PAT/R

S17L500-STM1/PAT/R

Winmate
Ціна за запитом

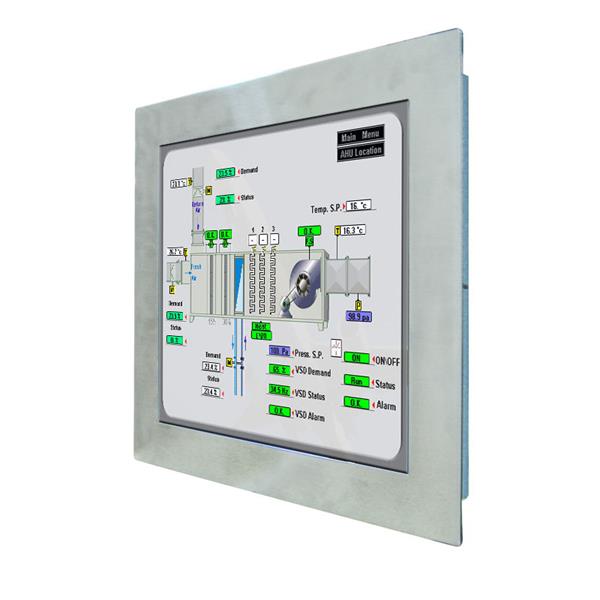

17" TFT LCD Panel Mount LCD Monitor, steel front bezel, 1280x1024, Resistive T/S (RS232), HDMI and VGA Input

Specification

Construction

Construction ChassisHeavy-Duty Steel Chassis
Mounting ConfigurationPanel
Material Front Side (Panel)Stainless Steel Front Panel

Display

Display TypeLCD TFT
Diagonal17 "
Maximum resolution1280x1024 Dots
Brightness350 Cd/m2
Contrast Ratio1000~1
Input InterfaceD-Sub, HDMI

Touch Screen

Touch Screen TypeResistive
InterfaceRS-232, USB

LED / Controls

ControlsKeyPad

Connectors

ConnectorsDB15 VGA, HDMI, DC Input

System Power Input

Input Voltage DC12...12 V

Power Supply

Type of Power SupplyExternal power adapter AC/DC
Output Power36 W
Input Voltage AC100...240 V

Operating Conditions

Operating Temperature0...50 °C

Dimensions and weight

Width440 mm
Height440 mm
Depth67 mm
