Construction | |
| Construction Chassis | ABS plastic chassis |
| Protection Level of Front Side (Panel) | IP67 |
| Protection Level of Chassis | IP67 |
| Type | Fanless |
Display | |
| Diagonal | 4.3 " |
| Maximum resolution | 480x800 Dots |
| Brightness | 420 Cd/m2 |
Touch Screen | |
| Touch Screen Type | Resistive |
CPU | |
| Processor Installed | ARM Cortex A8 |
| Max CPU frequency | 1 GHz |
Memory | |
| Form-factor | DDR |
| Default on Board Memory | 512 GB |
Wi-Fi | |
| Wi-Fi Standard | 802.11b/g/n |
Interfaces | |
| USB Total | 1 |
Drive interfaces | |
| MicroSD | 1 |
Extension Slots | |
| SIM Card slots | 1, Yes |
Additional Functions | |
| Rear Camera | 5 MP |
| GPS | GPS |
| RFID Reader | Optional |
| Sensors | Light Sensor, G-sensor, E-compass, Proximity sensor |
Antenna characteristics | |
| Cellular interfaces | 2G, 3G |
| Bluetooth | v2.1 + EDR |
Keyboard / Pointing Devices | |
| Number of Keys | 35 |
LED / Controls | |
| LED | 1xOn/Off LED |
| Controls | On/Off, Control Buttons |
Connectors | |

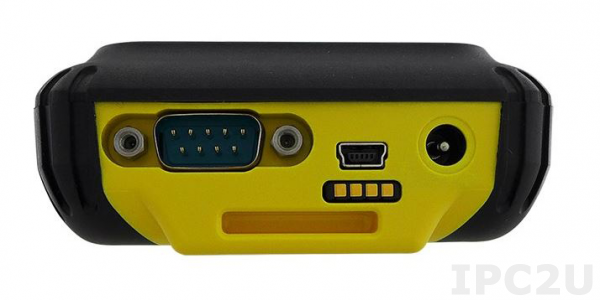

| Connectors | DB9, Mic In, Line In, DC Input, SIM Card Slot, 1xMini USB, MicroSD card slot |
| Docking Station | Yes |
System Power Input | |
| Input Voltage DC | 5...5 V |
Power Supply | |
| Type of Power Supply | USB adapter |
Battery | |
| Battery 1 Technology | Li-ion |
| Battery Capacity | 5000 mA*h |
| RunTime Battery 1 | 0 h |
Software | |
| Operating System Installed | Windows Embedded Handheld |
Dimensions and weight | |
| Width | 178 mm |
| Height | 30 mm |
| Depth | 89 mm |
Operating Conditions | |
| Operating Temperature | -10...50 °C |
Standards and Certifications | |
| Certifications | CE, FCC |
| MIL-STD-810 | MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock |
| Safety | CCC |
